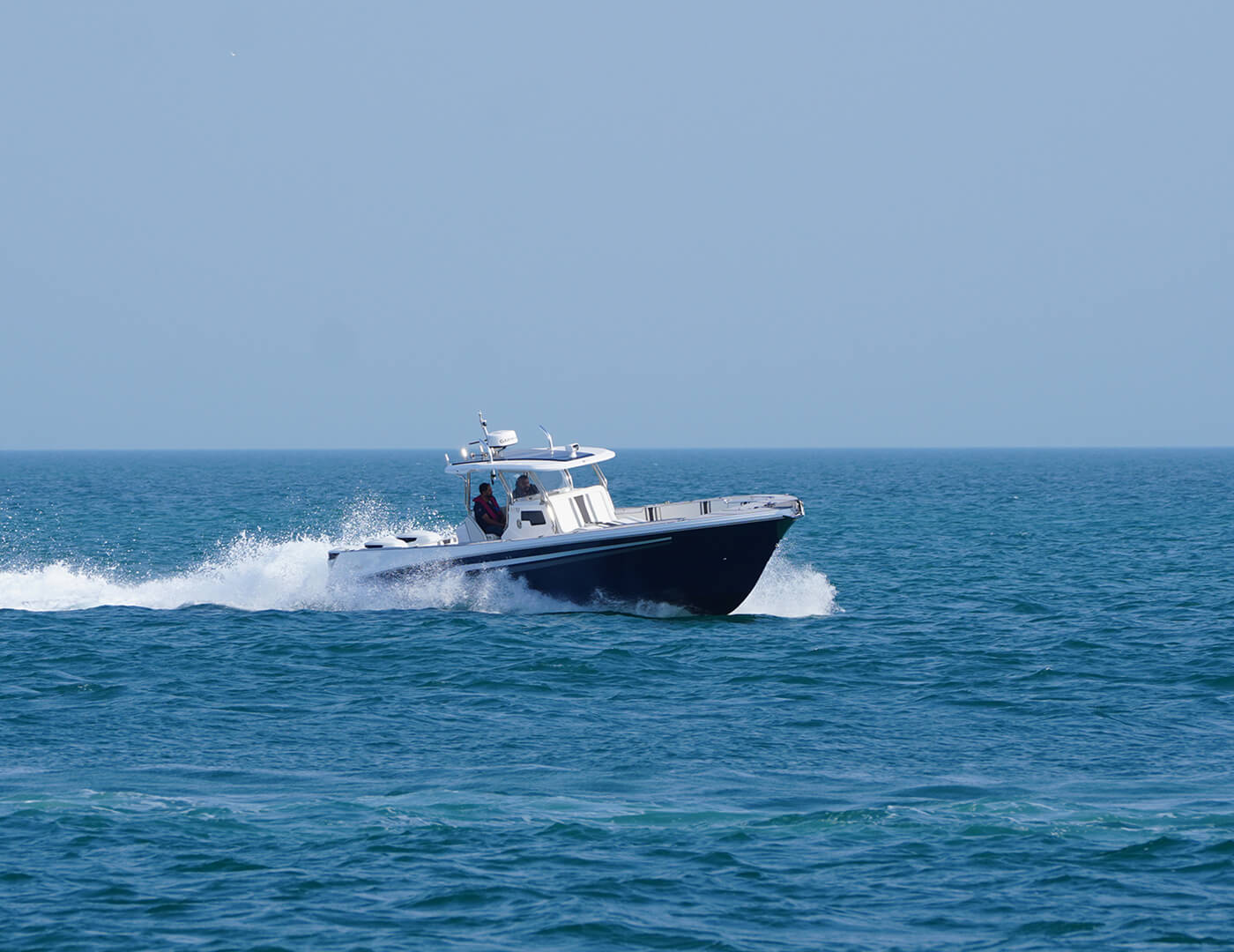

410 Sport Fishing

Al Dhaen Marine’s 410 SF

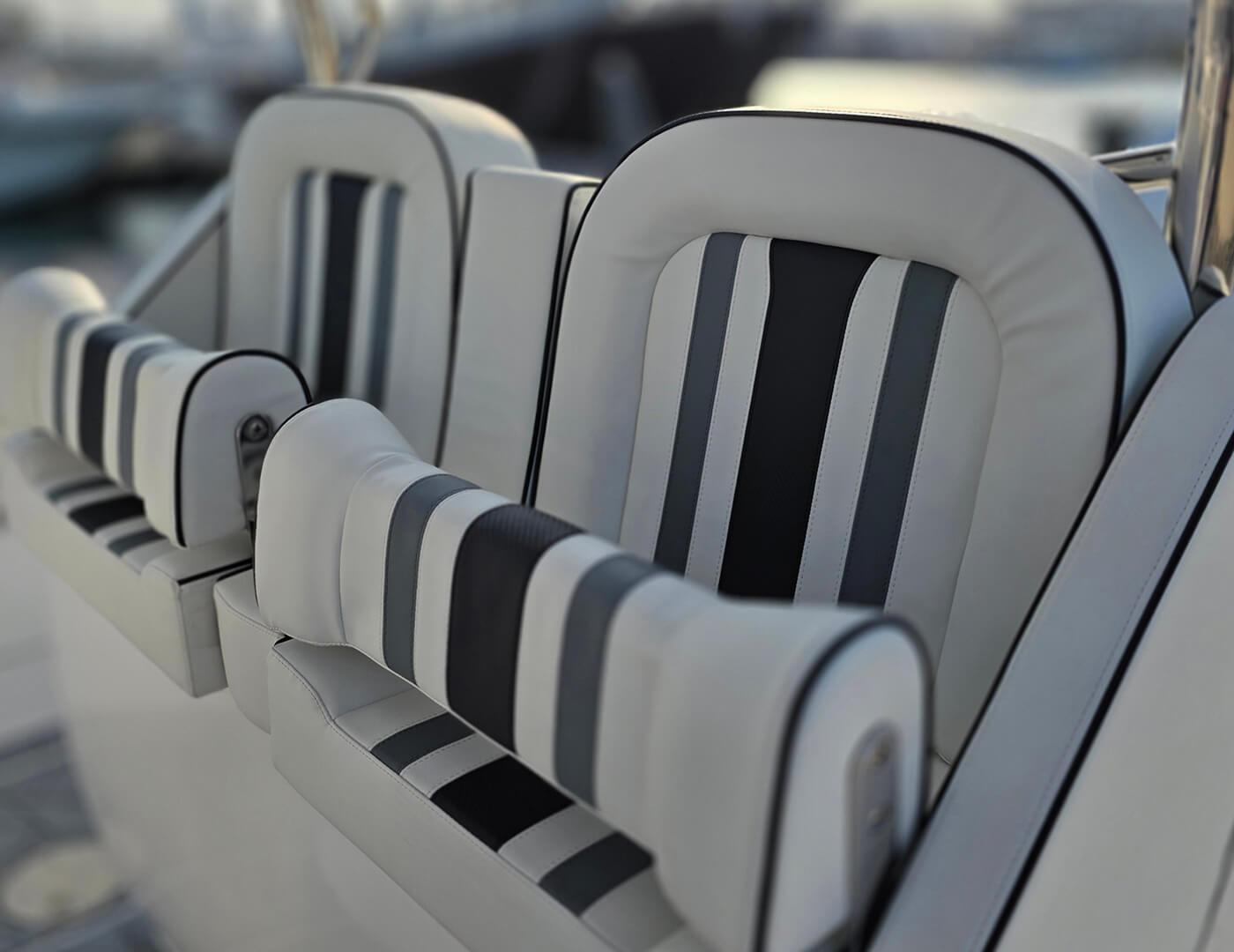

Comfortable seating with personal luggage storage

Full roof shade

Entertainment system

Stability

Perfect sea view

Safety features

Easy access

Durability

410 Sport Fishing

The 410 SF

  • 13.50 m (44’ 3”
  • 12 persons
  • 9,200 kg (20,282.5 lbs)
  • 1200 HP
  • Length of the Hull (W/E):: Length of the Hull (W/E) : 12.50m (44'33")
  • Beam:: Beam : 3.34m (10'11")
  • Draft (Full loaded):: Draft (Full loaded) : 0.60m (2')
  • Displacement (Full load): Displacement (Full load) : 9,200 kg (20,282.5 lbs)
  • Fuel Tank Capacity: : Fuel Tank Capacity : 1,000 (264.2 US gal)
  • Fresh Water Tank Capacity:: Fresh Water Tank Capacity : 200 L (52.8 US gal)
  • Black Water Tank Capacity: Black Water Tank Capacity : 50 L (13.2 US gal)
  • Carrying Capacity: Carrying Capacity : 1,200kg (2,645.5 lbs)
  • Max Persons:: Max Persons : 12
  • Max Engine HP Capacity: Max Engine HP Capacity : 1,200 HP
Download Full Specifications

410 Sport Fishing

General
  • Hull and Deck and all Moldings
  • All Deck areas in non-slip GRP
  • All finishes in high gloss white gel coat

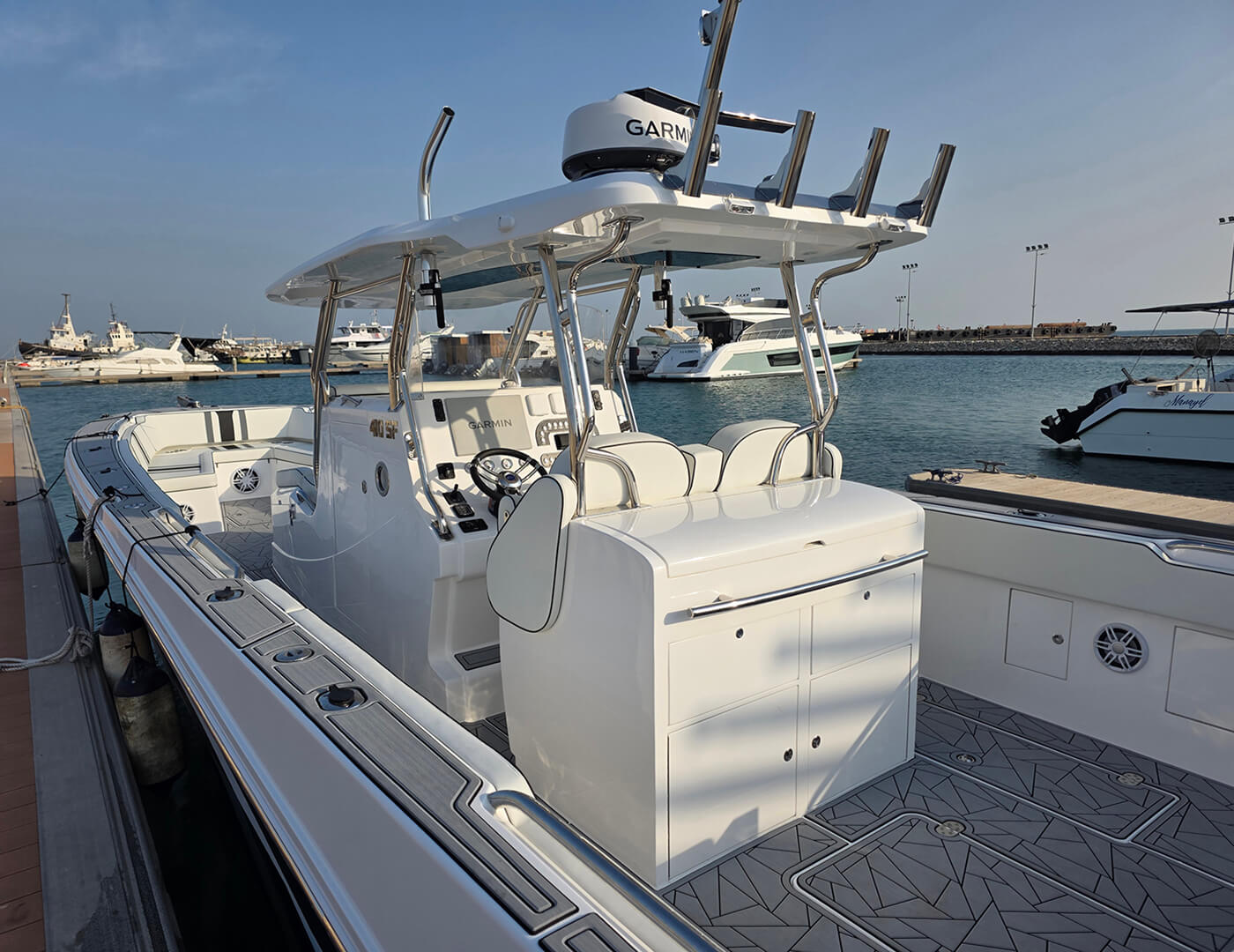

  • Hard-top canopy in GRP with stainless steel supports (All handrails to be stainless steel and bow rails)

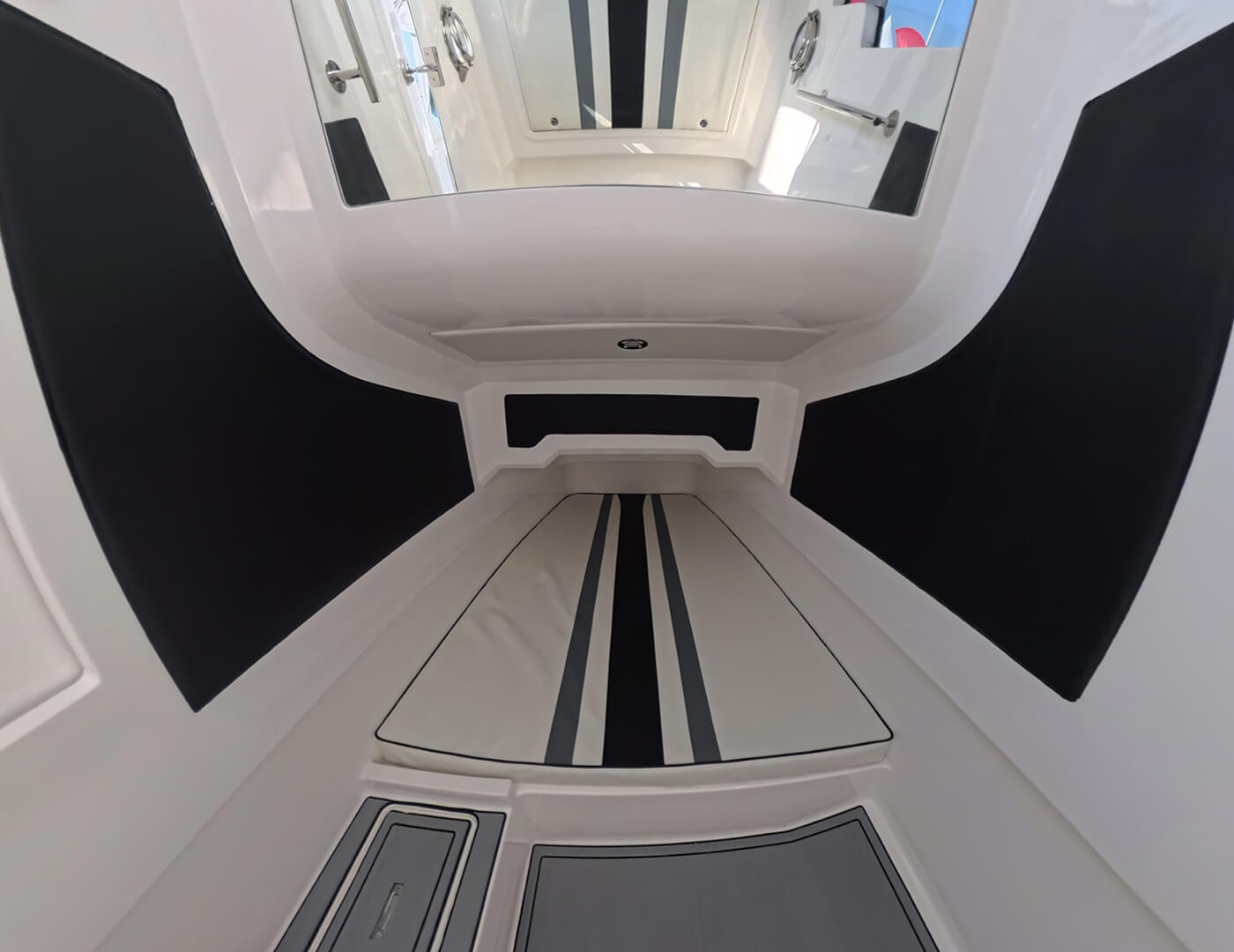

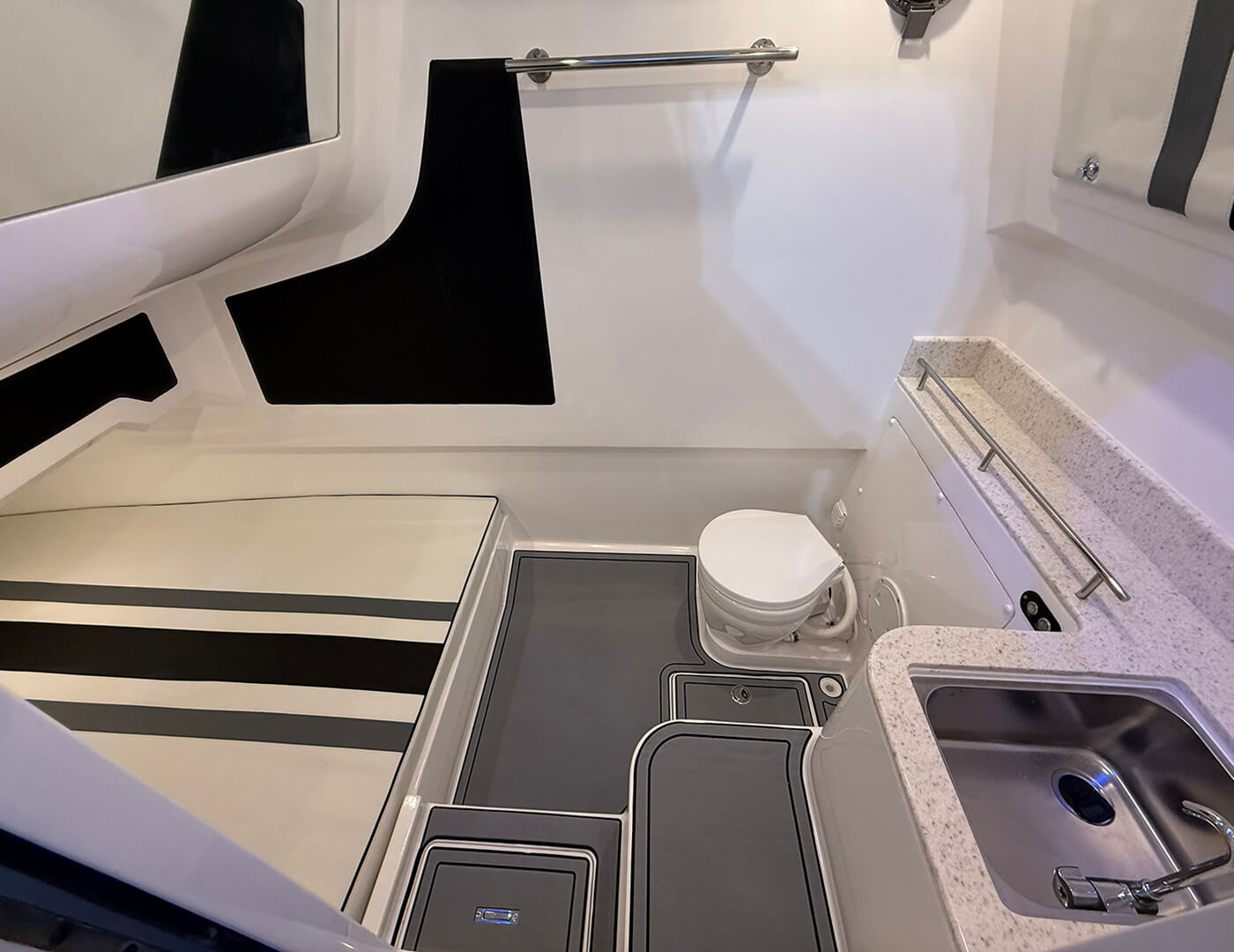

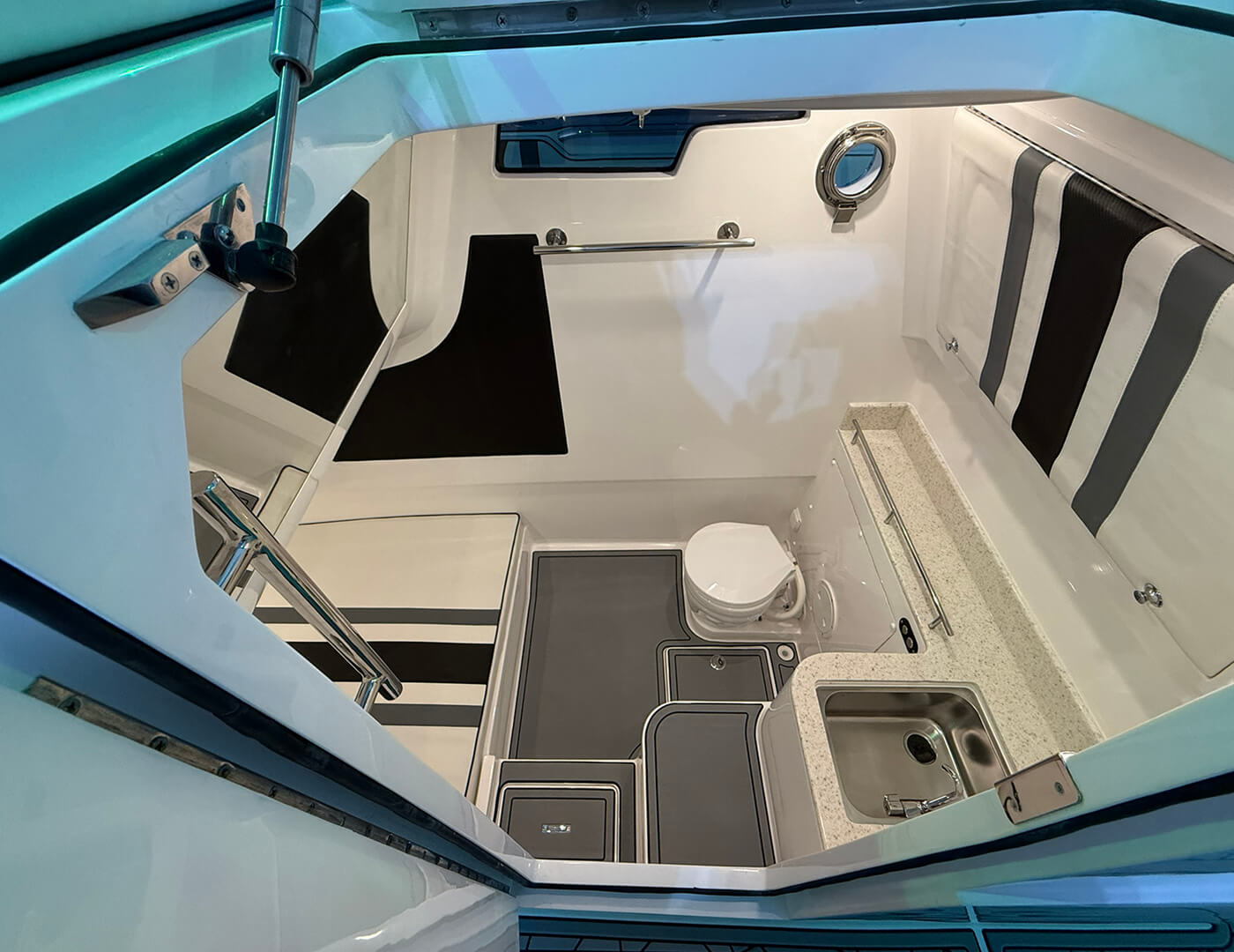

  • Large center console with clear windshield, cabin, double berth with mattress, electric toilet (direct overboard) sink, and freshwater shower, 2 x stainless steel port hole (PS 7 STBD) and blower
  • Console internal linings in white

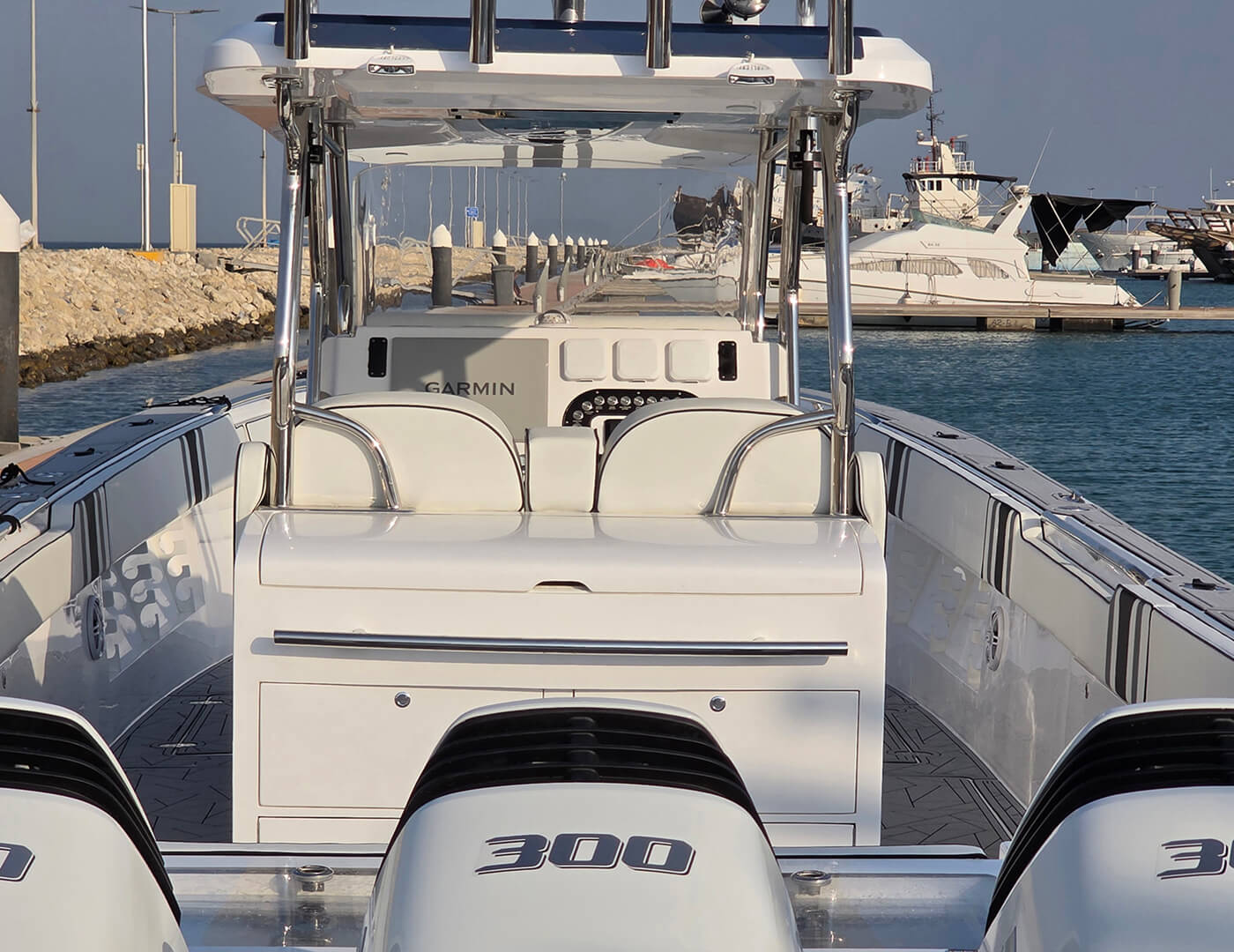

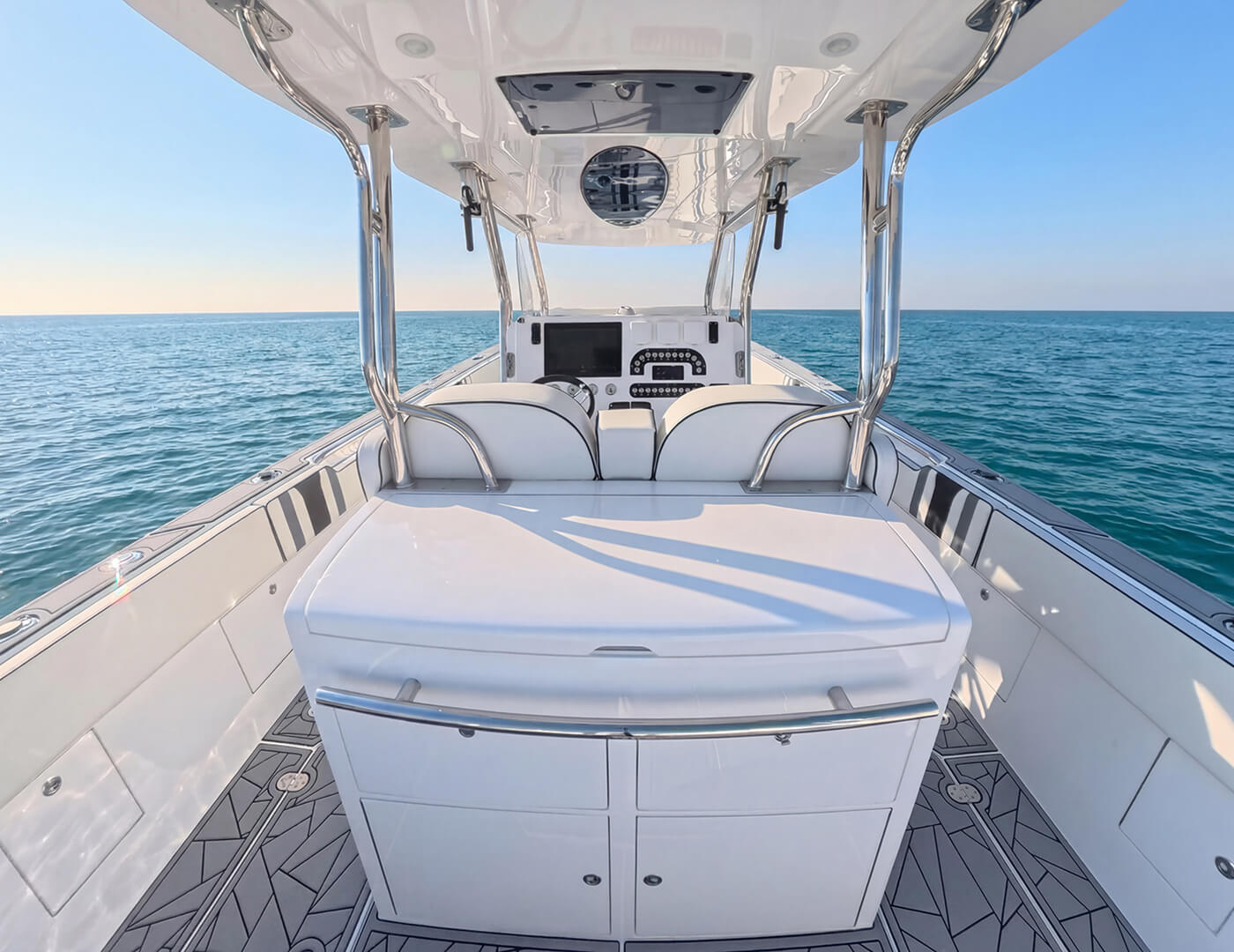

  • 2 x Large fixed helm seats with two LED cup holders in-between

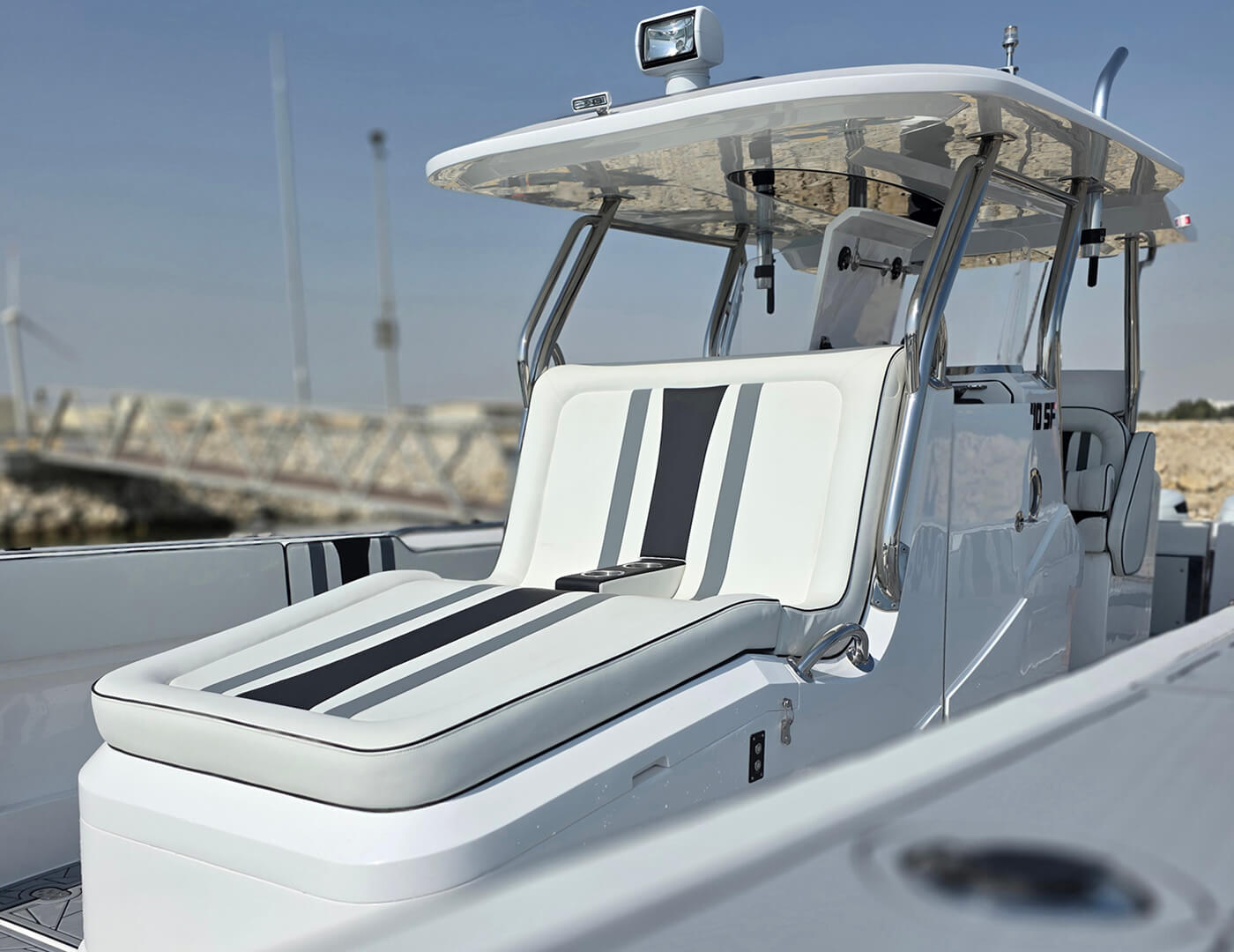

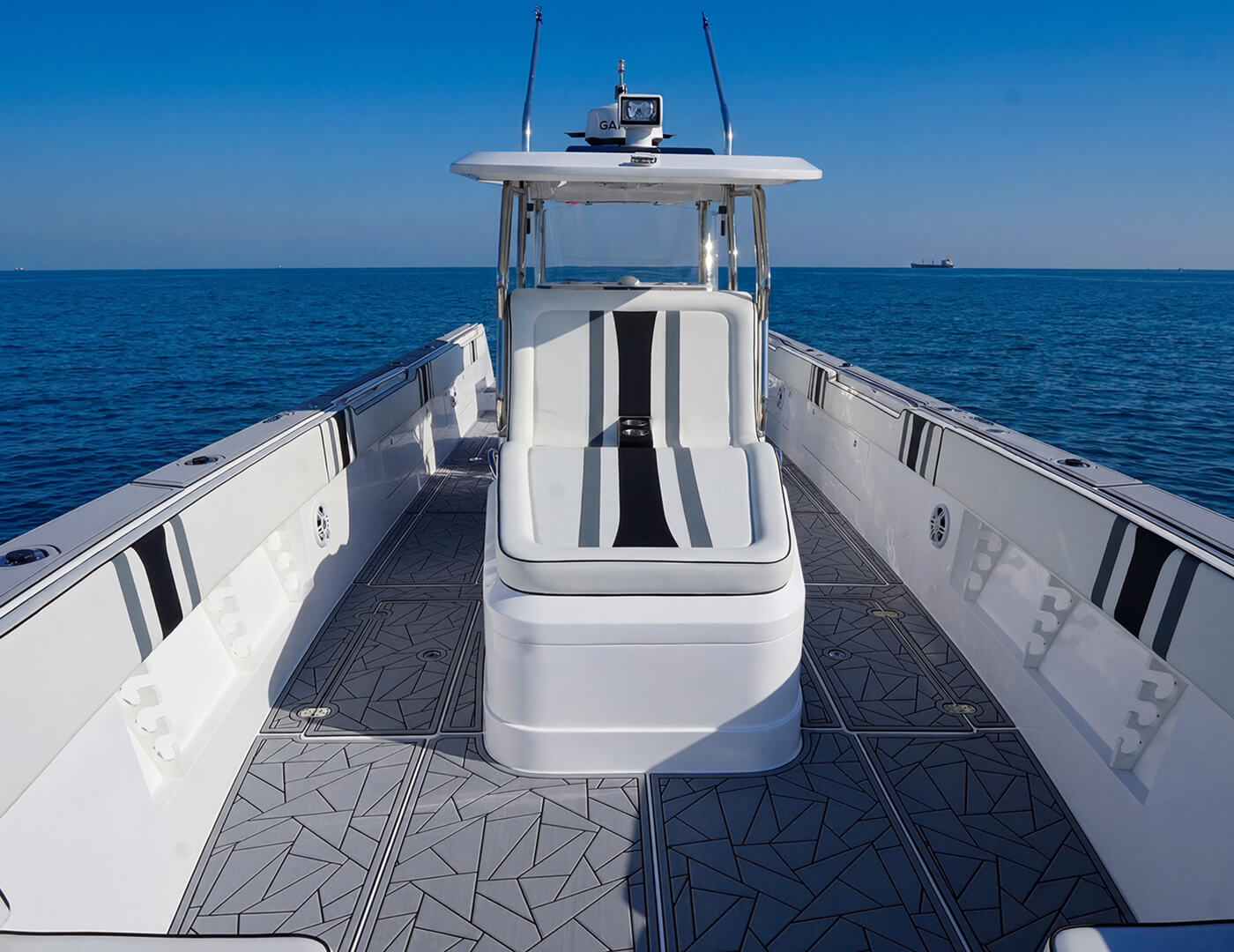

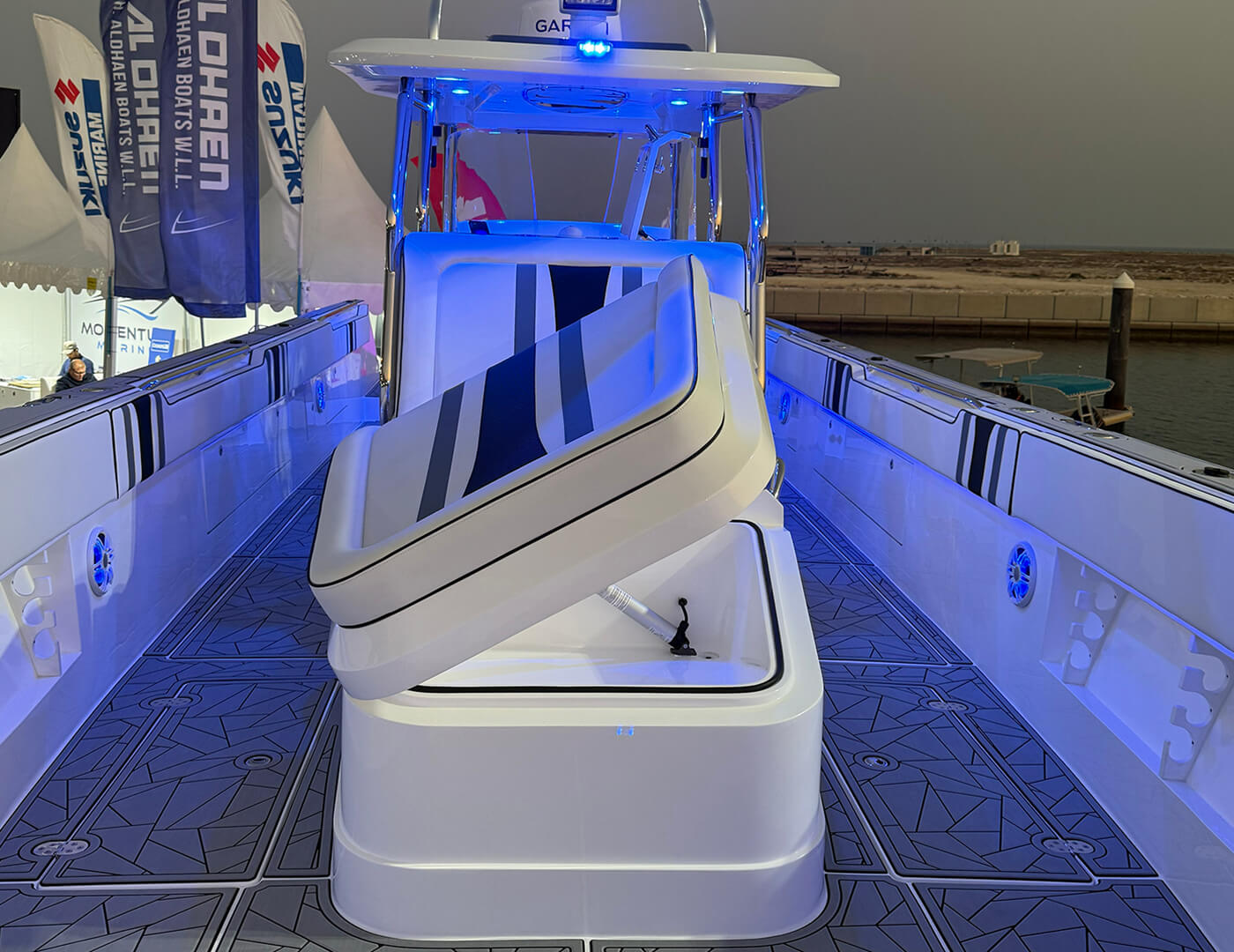

  • Large sunbed on the front of the console with luxury upholstery design, 2 cupholders and 2 handrails on the side

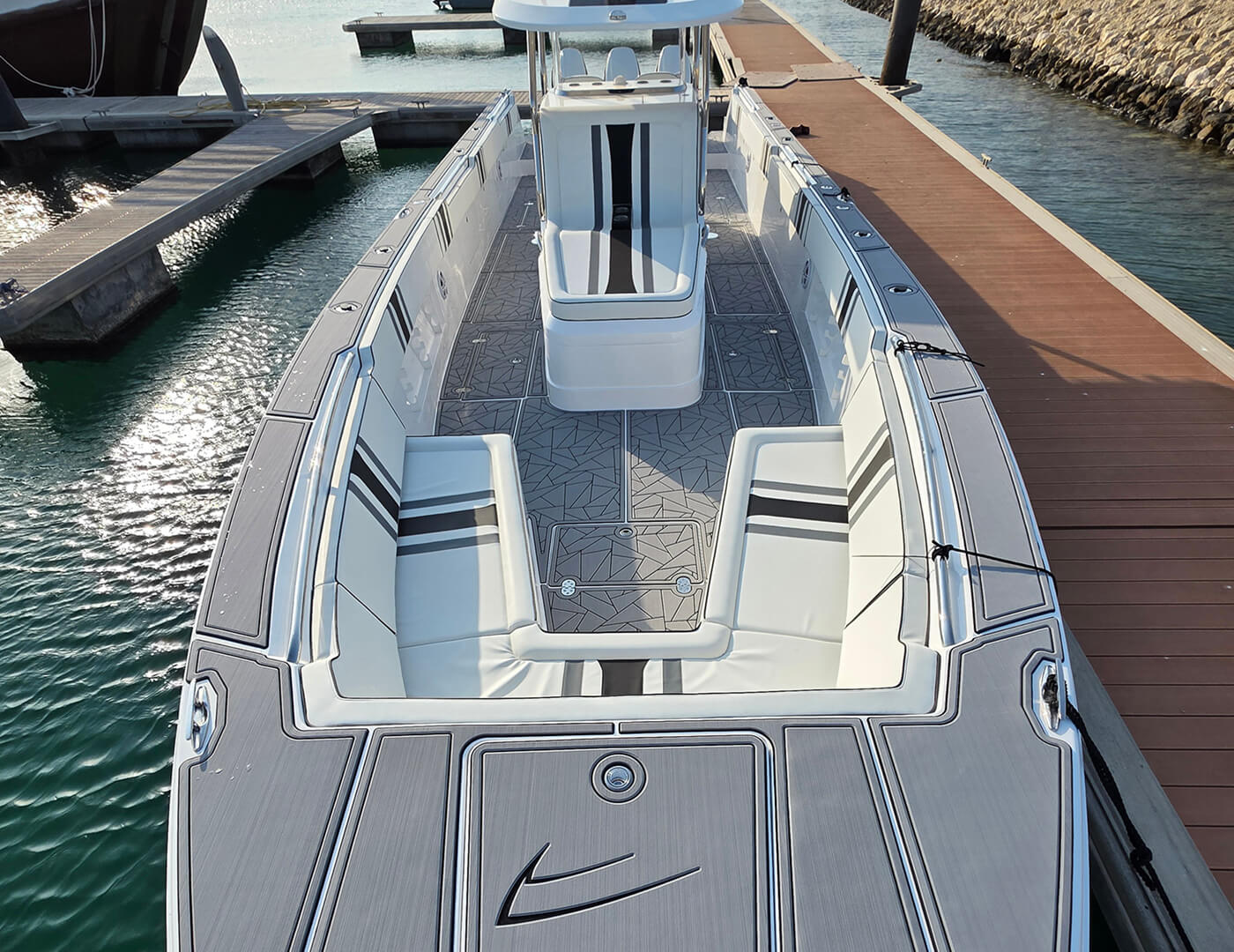

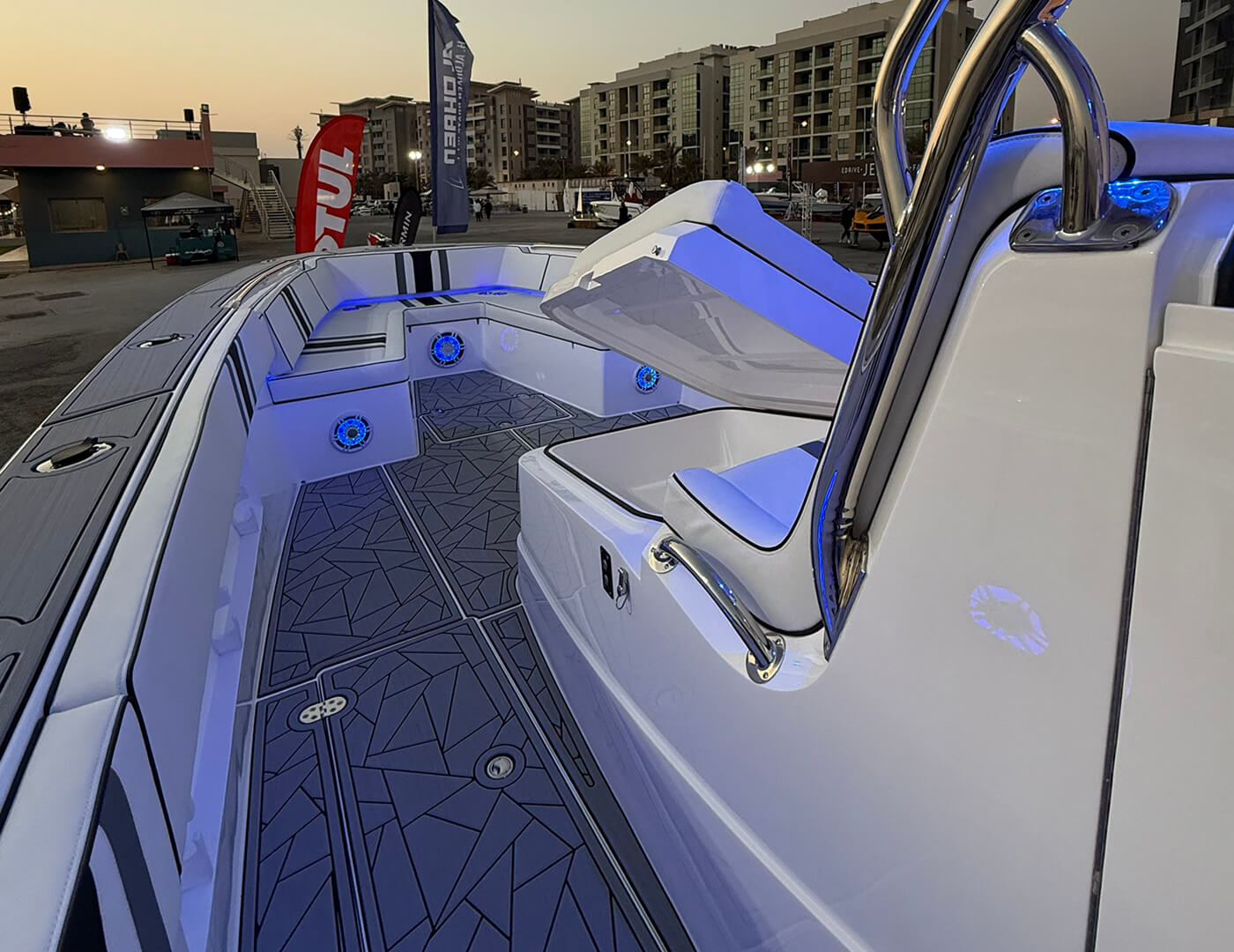

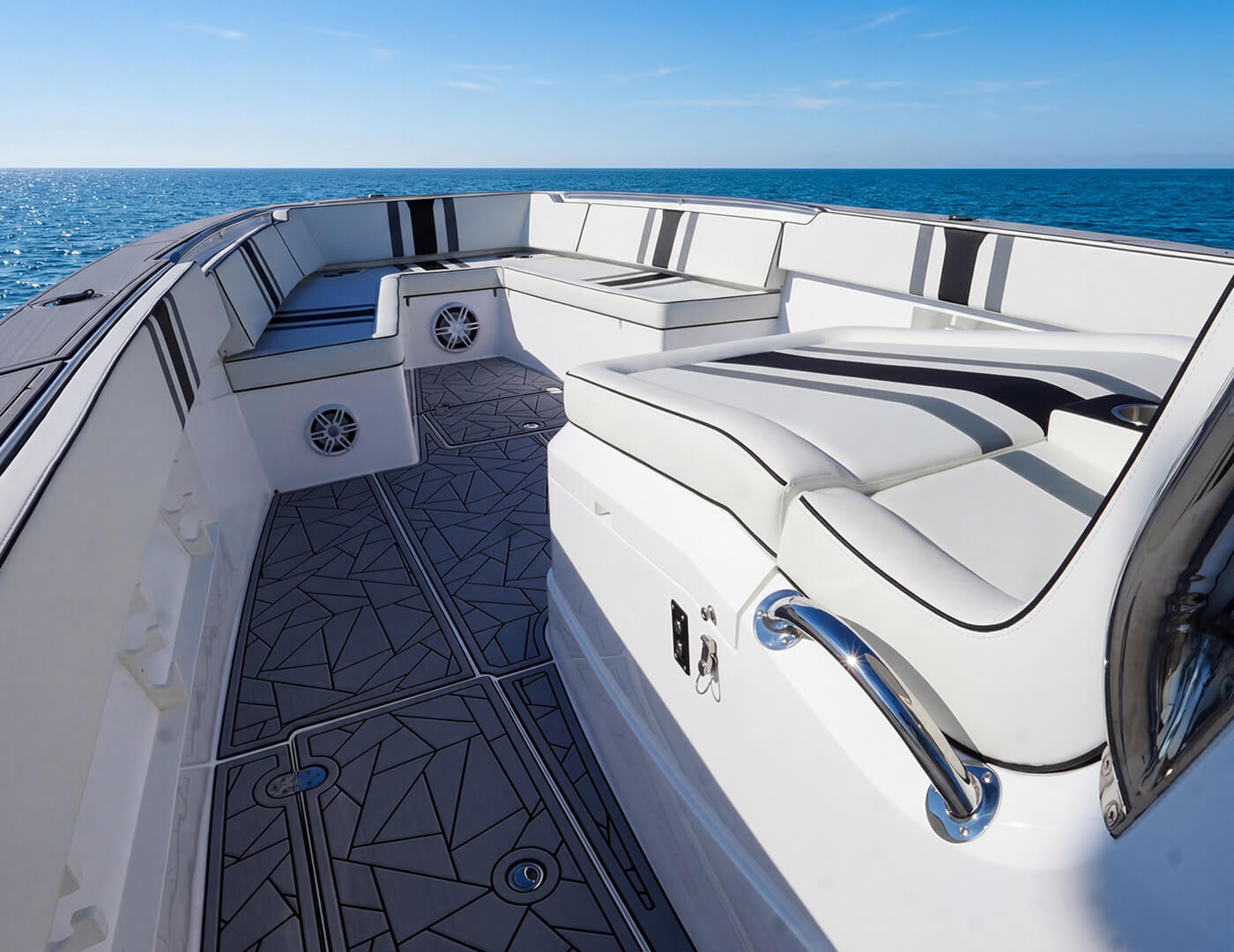

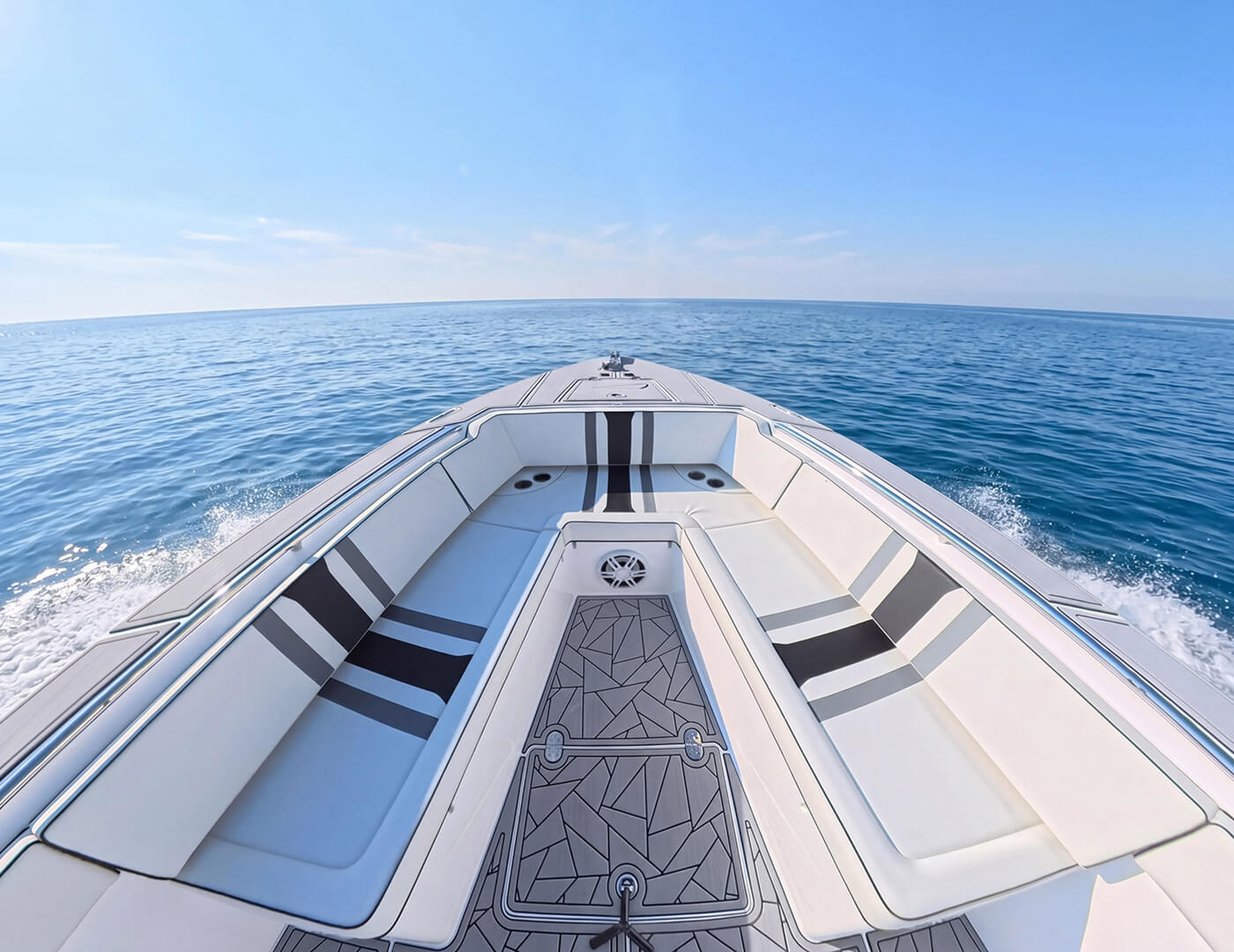

  • Forward u-seat with storage and luxury upholstery design including 4 x LED cup holders (2 PS & 2 STBD)
  • All border panels of diamond luxury upholstery in constracting color as per selection

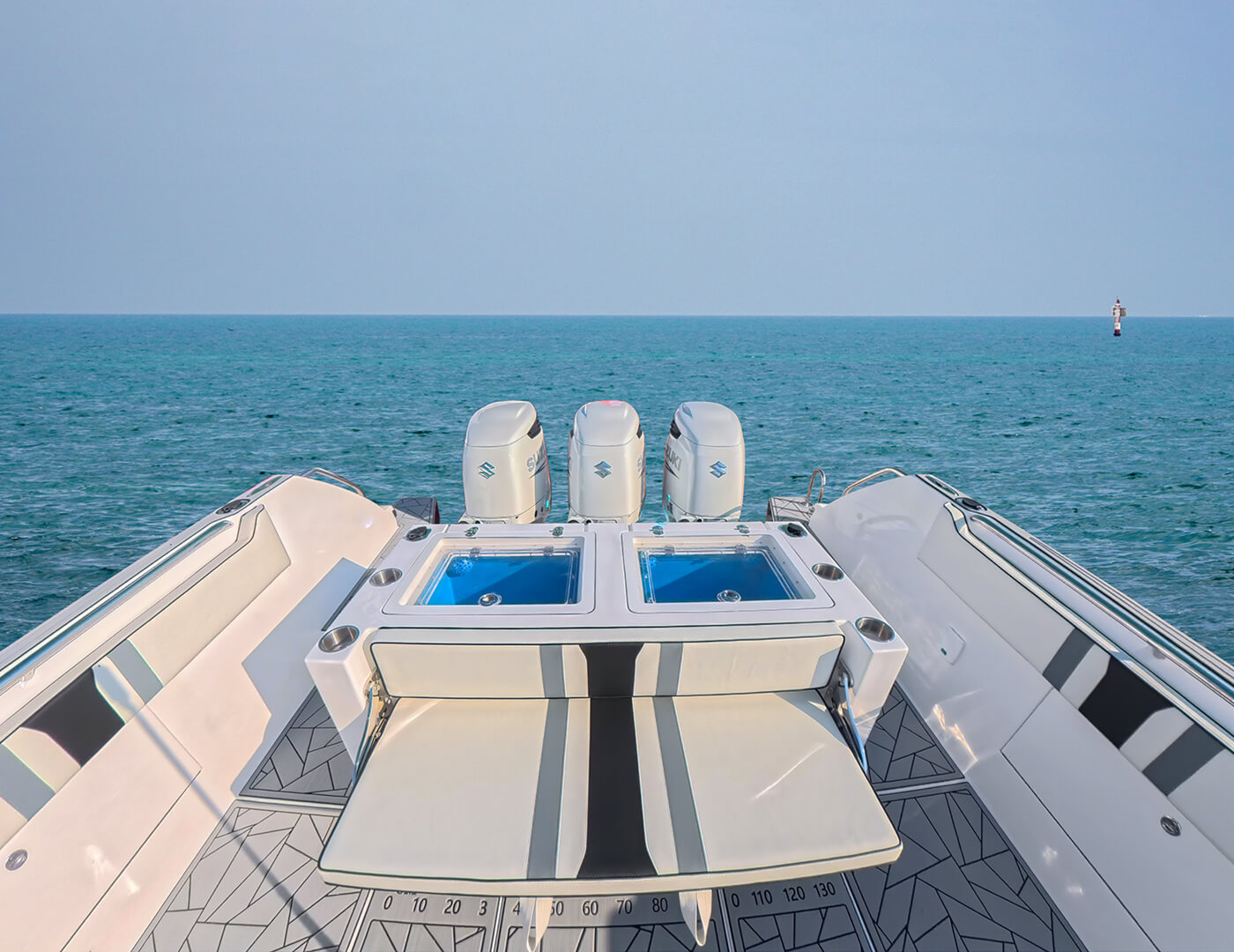

  • 2 x Foldable Aft seat with fixed backrest & luxury upholstery design

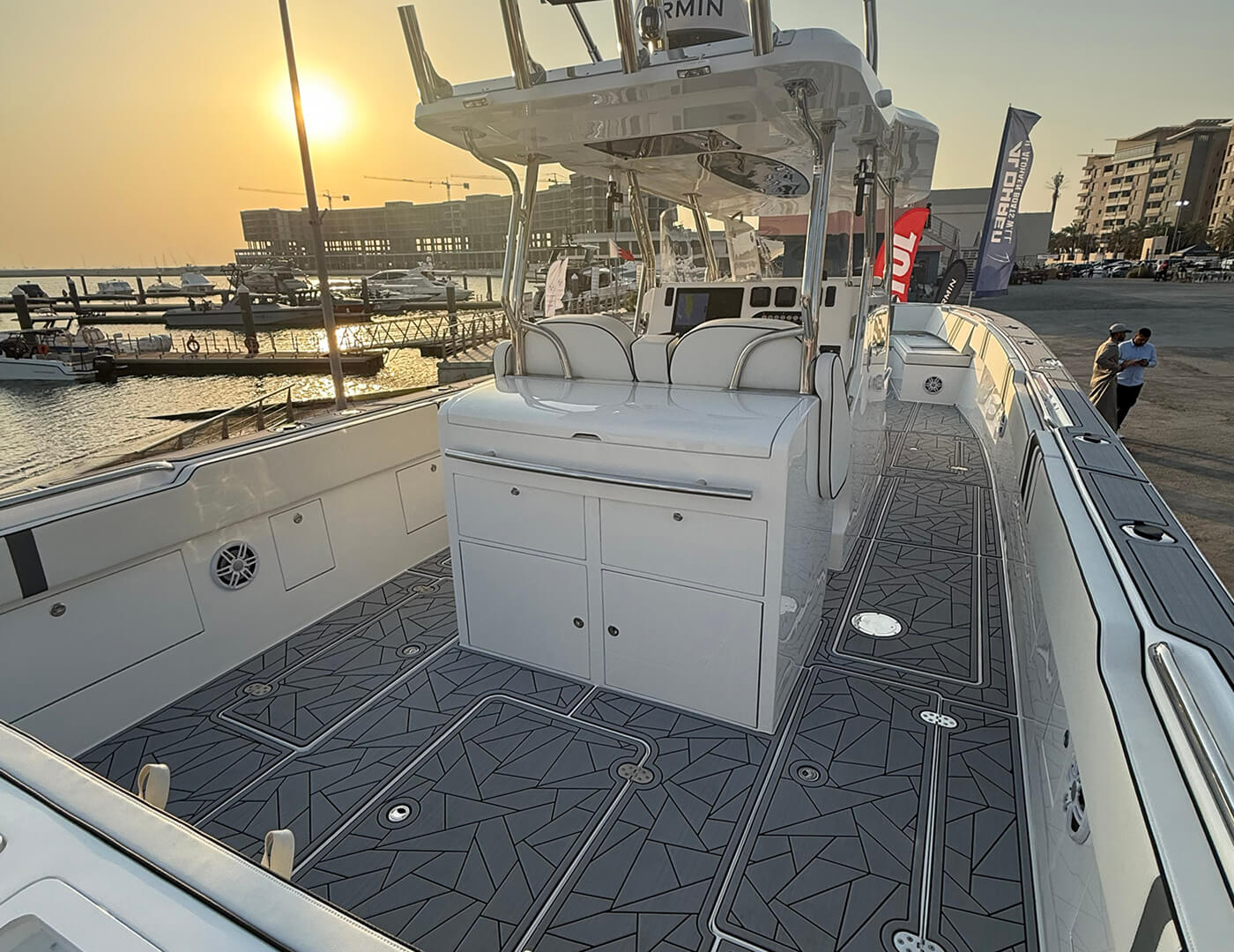

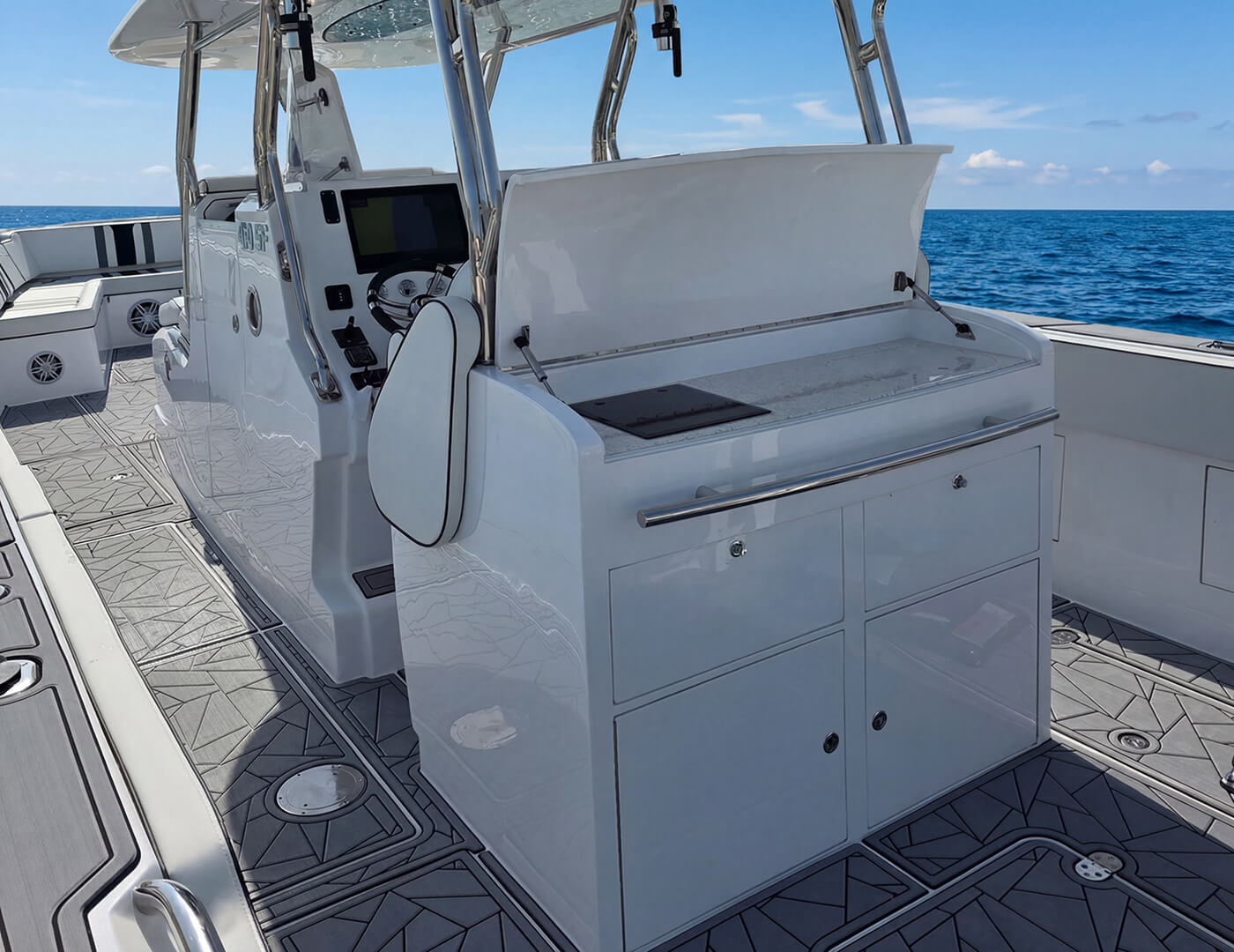

  • GRP corian wet bar top with sink, tap, 2 drawers & 2 storages underneath

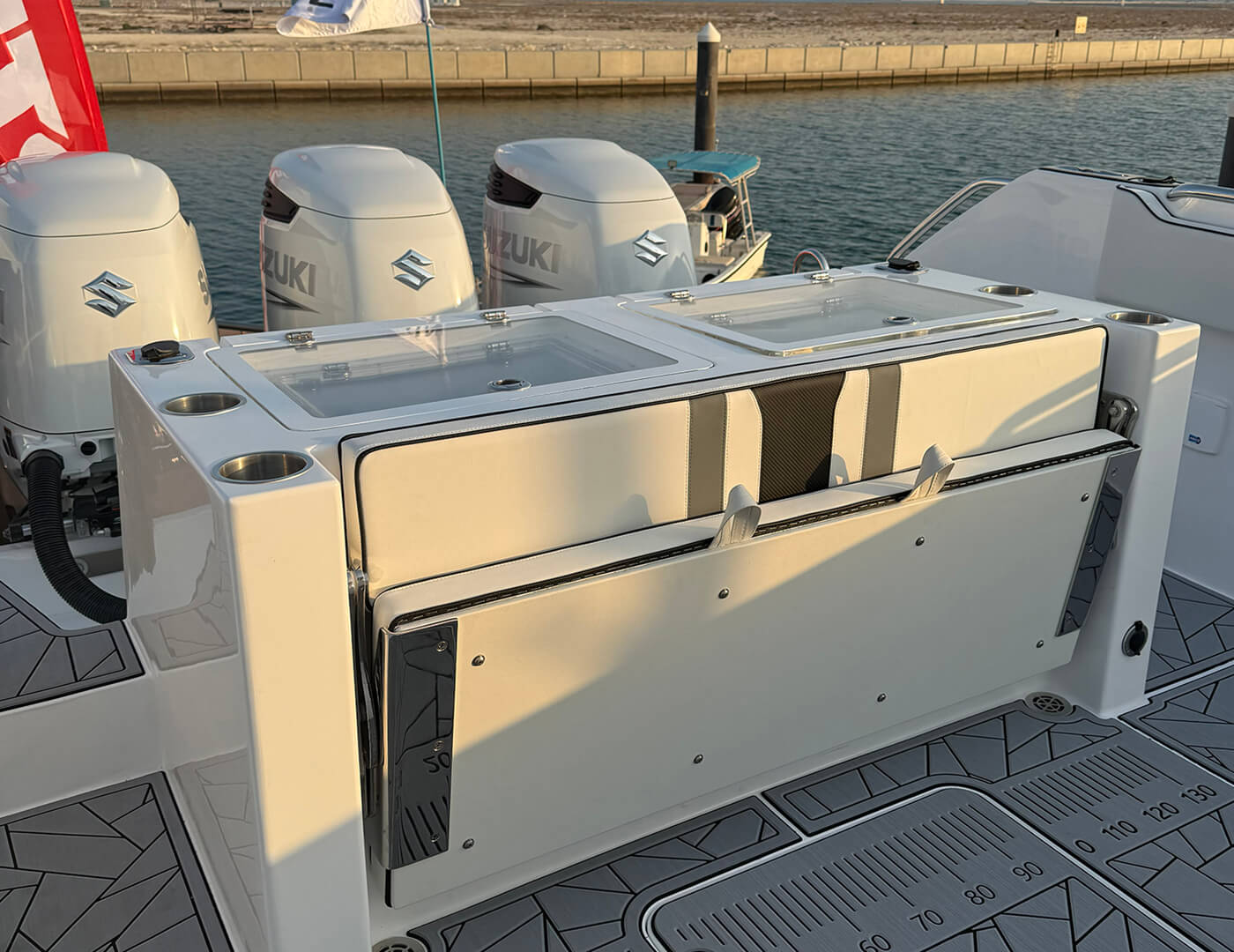

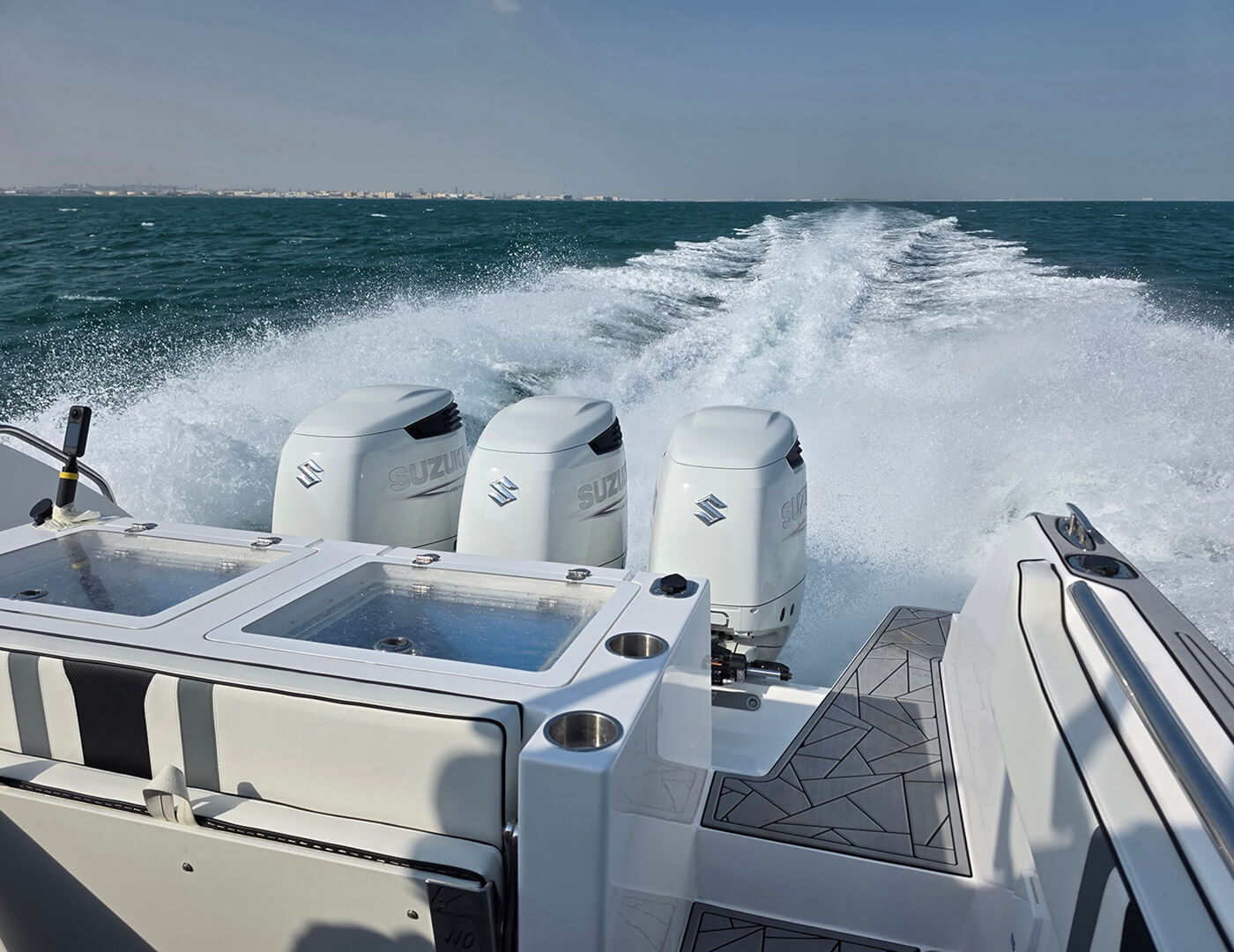

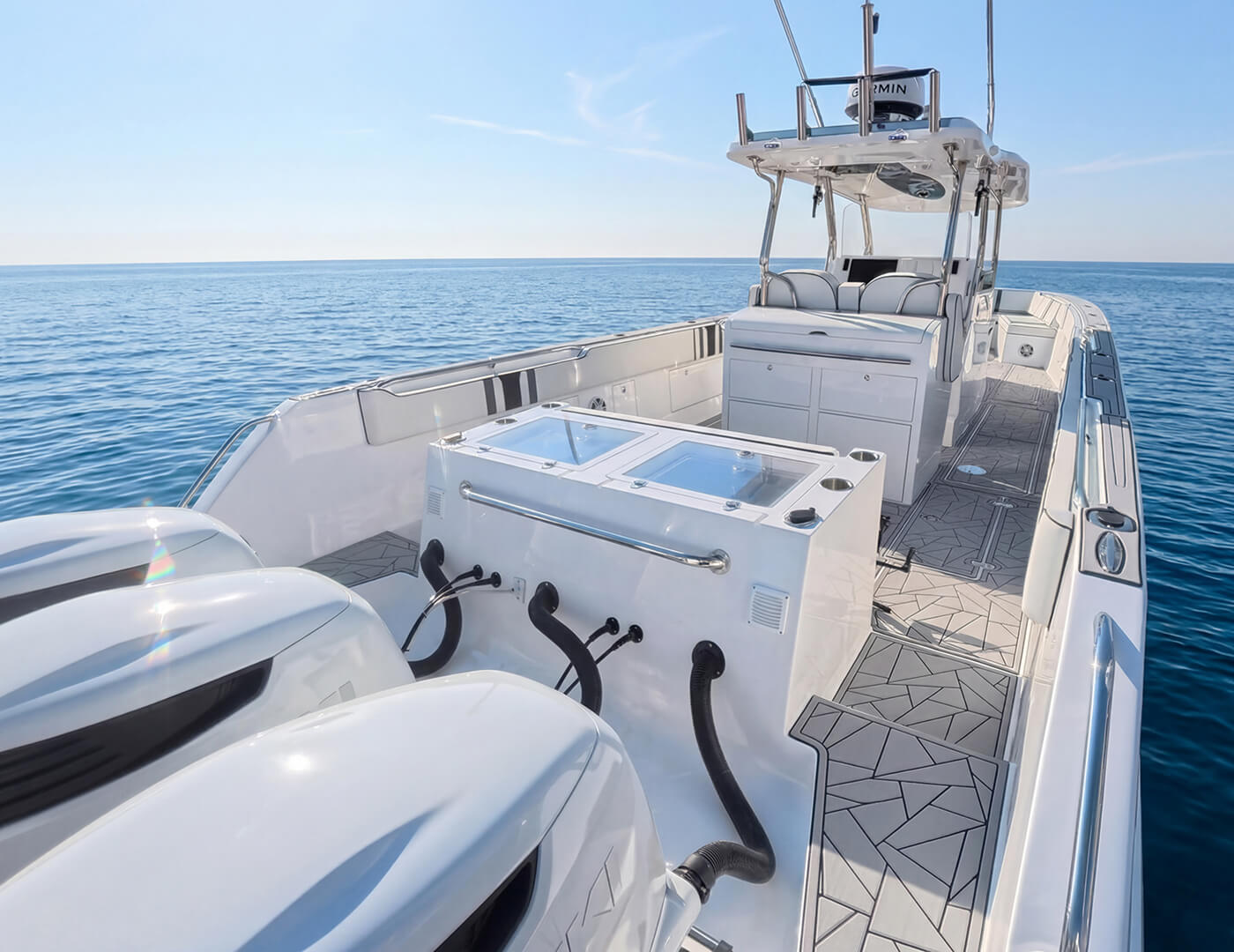

  • 2 x Live baitwell tank with pump, sea chest and 4 x stainless steel LED cupholders at the Aft behind the foldable seat
  • Two storage with locking arrangements under gunwale (PS & STBD) mindship storage with door & forward storage (open) for fishing rod holders (PS & STBD)
  • Garbage box below the gunwale at the Aft area (PS)
  • Small storage box with shelf at the Aft area (STBD)
  • Manual bilge pump
  • White rubbing strake with stainless steel insert
  • Aluminum fuel tank with fittings
  • GRP fresh water tank with fittings
  • All side bolsters with luxury upholstery design in constrasting color as per selection
  • 4 x Large storage on deck (2 forward and 2 Aft)
Deck Fittings
  • 3 x Stainless steel U-bolts (2 bow & 1 Aft)
  • 6 x 10” Stainless steel cleats (2 Forward, 2 midship and 2 Aft)
  • Stainless steel bow roller with Galvanized anchor
  • Stainless steel grab rails at foredeck, midship and Aft (PS & STBD)
  • 2 x Stainless steel transom grab rails
  • Garelick 3 step pull out ladder with stainless steel handrails at the port side
  • Stainless steel mast stand
  • 10 x Fishing rod holders on the gunwale (5 PS & 5 STBD)
  • 4 x Fishing rod holders on Aft hardtop
  • 2 x Fishing rod holders on the live baitwell area
  • 1 x 1 kg Fire extinguisher located on the console
  • 1 x 1 kg Fire extinguisher located within one meter of the helm
  • Aft deck wash (sea water)
Deck Fittings
  • 3 x Stainless steel U-bolts (2 bow & 1 Aft)
  • 6 x 10” Stainless steel cleats (2 Forward, 2 midship and 2 Aft)
  • Stainless steel bow roller with Galvanized anchor
  • Stainless steel grab rails at foredeck, midship and Aft (PS & STBD)
  • 2 x Stainless steel transom grab rails
  • Garelick 3 step pull out ladder with stainless steel handrails at the port side
  • Stainless steel mast stand
  • 10 x Fishing rod holders on the gunwale (5 PS & 5 STBD)
  • 4 x Fishing rod holders on Aft hardtop
  • 2 x Fishing rod holders on the live baitwell area
  • 1 x 1 kg Fire extinguisher located on the console
  • 1 x 1 kg Fire extinguisher located within one meter of the helm
  • Aft deck wash (sea water)

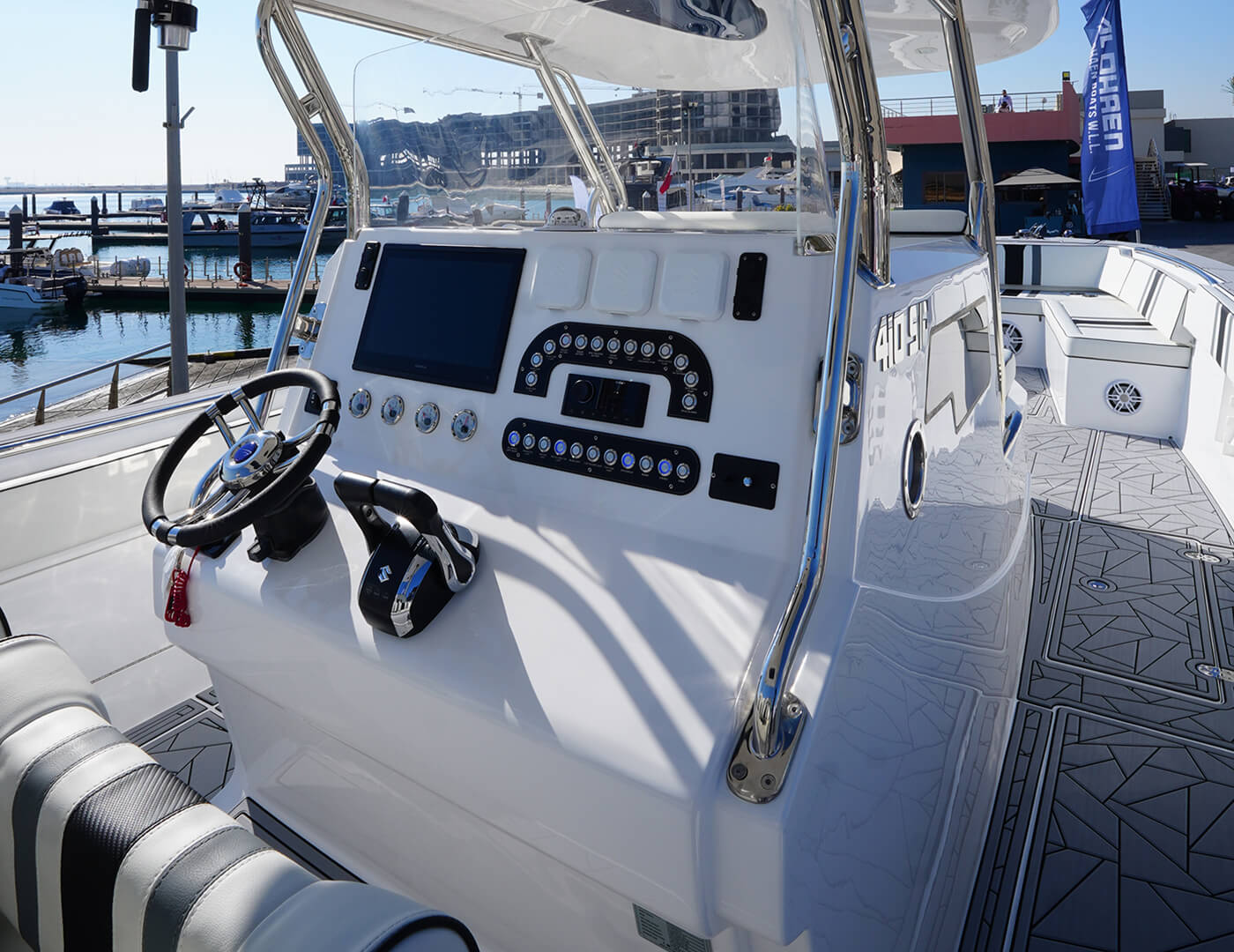

Helm & Electrical
  • Electric winch, 3 m galvanized chain, 30 m rope and SS swivel and chain stopper
  • Compass on helm
  • Illuminated black coated aluminum switch panel with stainless steel switches on console
  • 2 x USB charger, 12v outlet on helm
  • Navigation lights (PS & STBD) /Anchor light / Mast light / Stern light
  • 4 x Stainless steel LED cup holders on helm
  • 6 x LED Hardtop lights
  • 4 x LED Cabin lights
  • 2 x Toilet lights
  • 2 x Aft Spreader lights on the hardtop
  • Strip lights on the side bolsters (single colour)
  • Electric horn with single trumpet on the hardtop
  • Garmin GPS 1223xsv (12” touch screen display with Blue Chart)
  • 2 x 1500GPH & 1 x 3200GPH auto bilge pump to include bilge alarms (one 1500GPH & 1 x 3200GPH Aft)
  • Electric fuel sender & gauge on the helm
  • Electric water sender & gauge on the helm
  • 2 x Service batteries with battery boxes
