Utility

410 Emergency

Aldhaen Marine’s 410 Ambulance Boat is a specialized vessel designed for medical rescue and transport applications in both inland and offshore environments. The boat is equipped with a range of medical equipment and features, including a medical cabin with space for up to two stretchers and an integrated life support system. The boat is also designed with safety and reliability in mind, with a reinforced fiberglass hull and advanced navigation and communication systems.

Enhanced safety features

Shallow draft for tight rescues

Advanced communications system

Spacious medical bay

Sturdy and stable

Impressive speed to size ratio

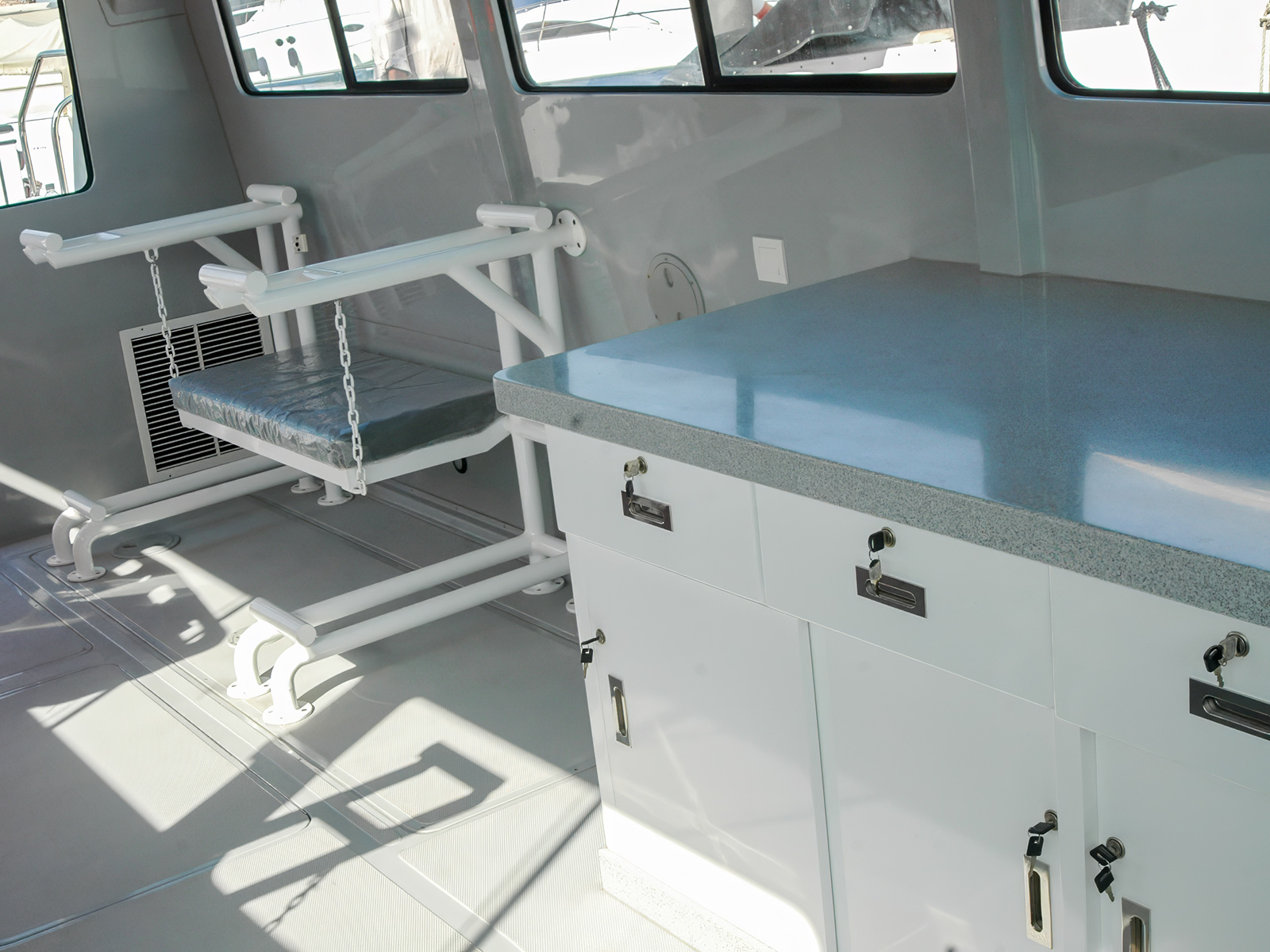

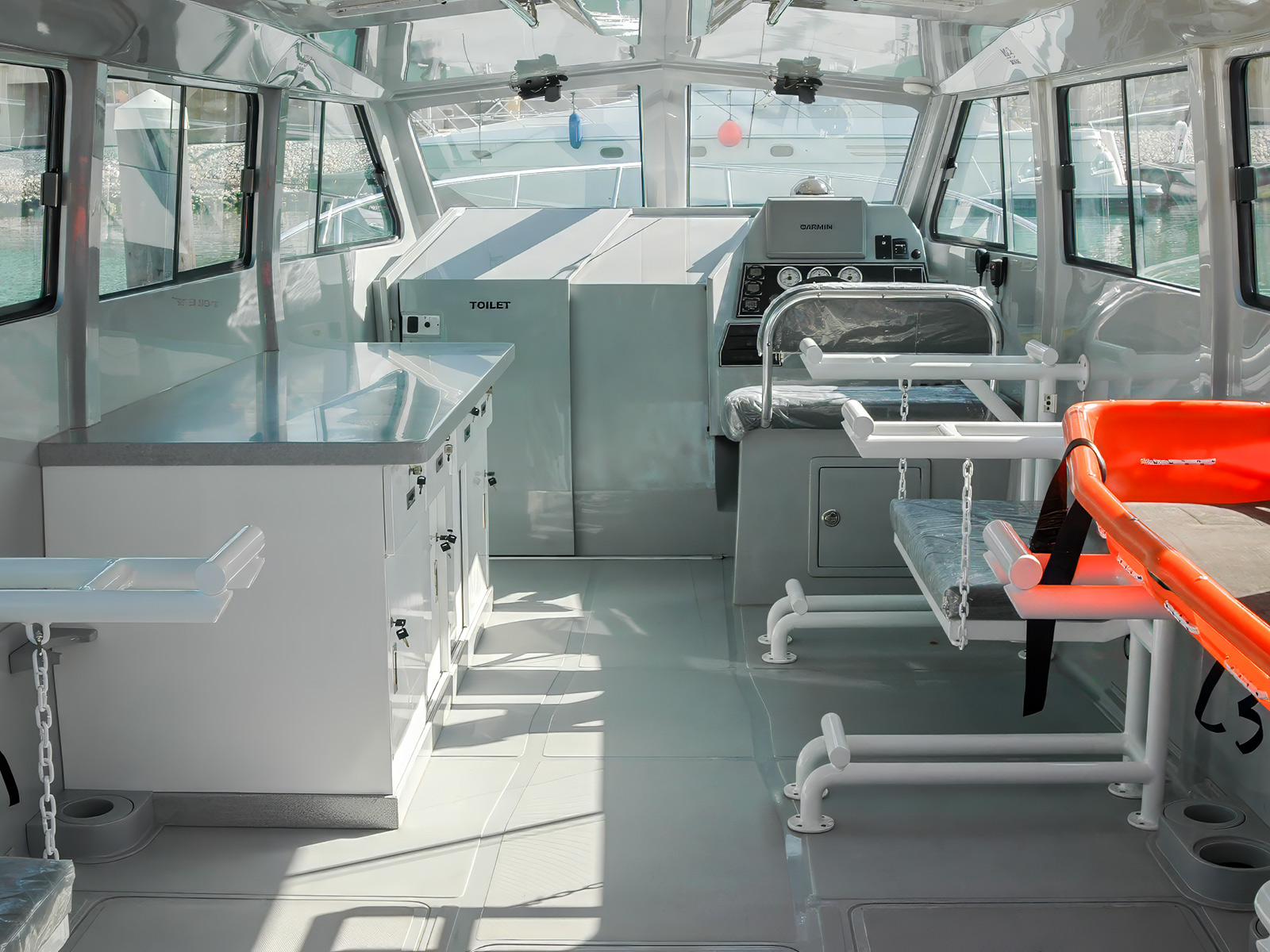

The medical cabin of the 410 Ambulance Boat is equipped with a range of features and equipment to ensure that patients receive the highest level of care during transport. The cabin is equipped with a built-in oxygen system, a defibrillator, a suction pump, and other essential medical equipment, and is designed to be comfortable and stable, even in rough sea conditions. The boat is also equipped with a range of safety features, including a fire suppression system and a life raft, ensuring that the crew and patients remain safe at all times.

The 410 Ambulance Boat is suitable for a range of different medical transport applications, including offshore oil and gas platforms, coastal hospitals, and emergency response organizations. The boat can be customized and configured to meet the specific needs of each application, with a range of optional extras and customizations available, including different medical equipment, lighting systems, and communications equipment. Overall, the 410 Ambulance Boat is a reliable and versatile vessel that provides a safe and comfortable environment for the transport of critically ill or injured patients.

Utility

410 Emergency

Aldhaen Marine's 410 ambulance boat is an impressive vessel designed to provide critical medical care in emergency situations. This boat is equipped with a wide range of features that make it ideal for rescue operations and medical evacuations.

  • 13.50 Metres
  • 12 persons
  • 11,500 Kg
  • 1,200 HP
  • Length of the Hull (W/E):: Length of the Hull (W/E) : 12.50 m (41’)
  • Beam:: Beam : 3.34 m (10’ 11”)
  • Draft (Full loaded):: Draft (Full loaded) : 0.69 m (2’ 3”)
  • Displacement (Full load): Displacement (Full load) : 11,500 kg (25,353.1 lbs)
  • Fuel Tank Capacity: : Fuel Tank Capacity : 1,000 l (264 US gal)
  • Diesel Tank Capacity: Diesel Tank Capacity : 200 l (52.8 US gal)
  • Fresh Water Tank Capacity:: Fresh Water Tank Capacity : 200 l (52.8 US gal)
  • Carrying Capacity: Carrying Capacity : 1,200 kg (2,645.5 lbs)
  • Max Persons:: Max Persons : 12
  • Max Engine HP Capacity: Max Engine HP Capacity : 1,200 HP
Download Full Specifications
Utility

410 Emergency

In addition to its multifunctional capabilities, the 410 Ambulance model boasts a plethora of supplementary features and add-ons, which are itemized in the list below for your reference.

Standard Equipment
  • Hull and deck finished in white gel coat
  • Deck areas in non-slip GRP
  • Anchor locker with cushion
  • Close cabin, with aft GRP door and window
  • Helm seat with upholstery and stainless steel backrest
  • Sliding aluminum frame window at foredeck
    (Port & STBD) captain seat, fixed aluminum window at front
    & Aluminum frame cabin sliding Perspex windows
  • Aft deck, STBD side door for embarkation
    of passengers

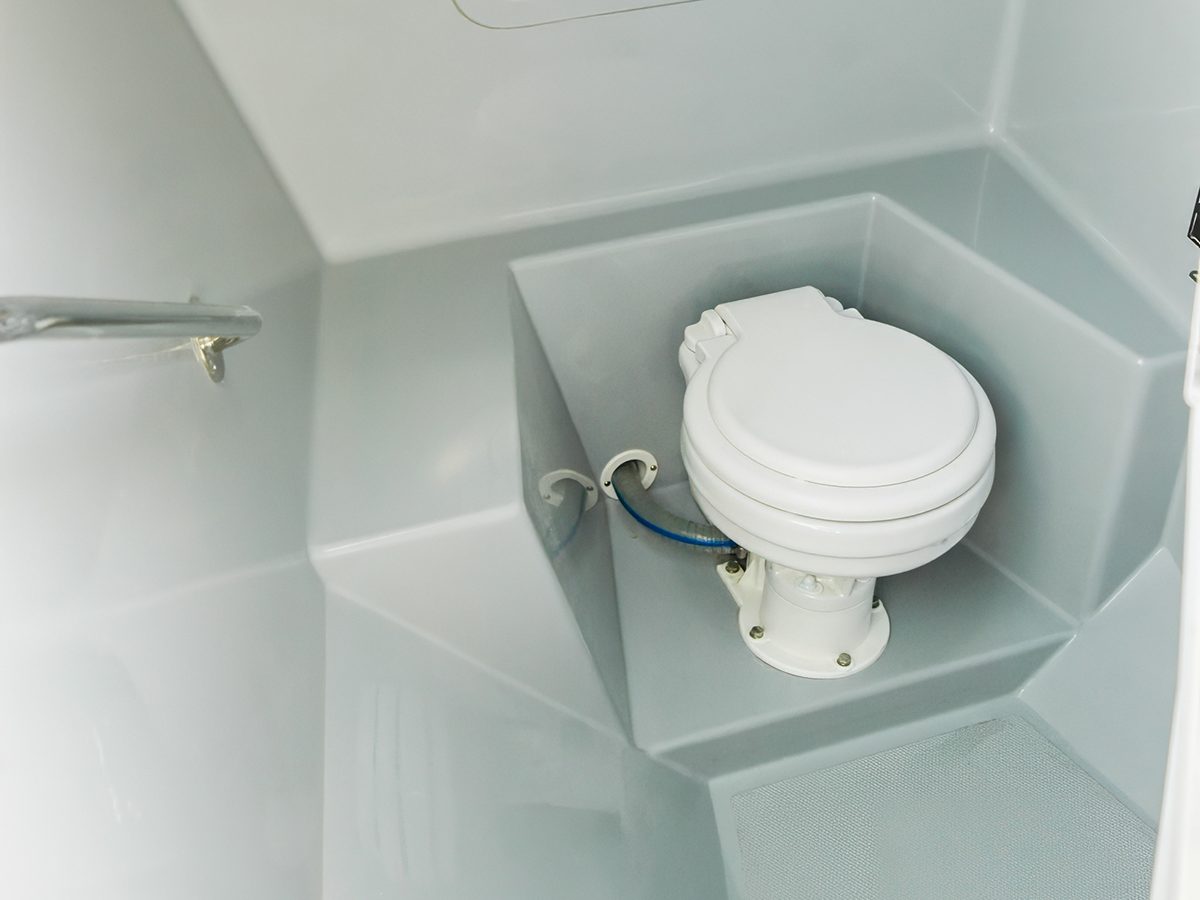

  • Fresh water electric toilet (direct overboard)
    inside the cabin with sink, pullout shower, scupper in
    the floor drains to bilge, stainless steel hinges and
    hasps for all hatches with lock

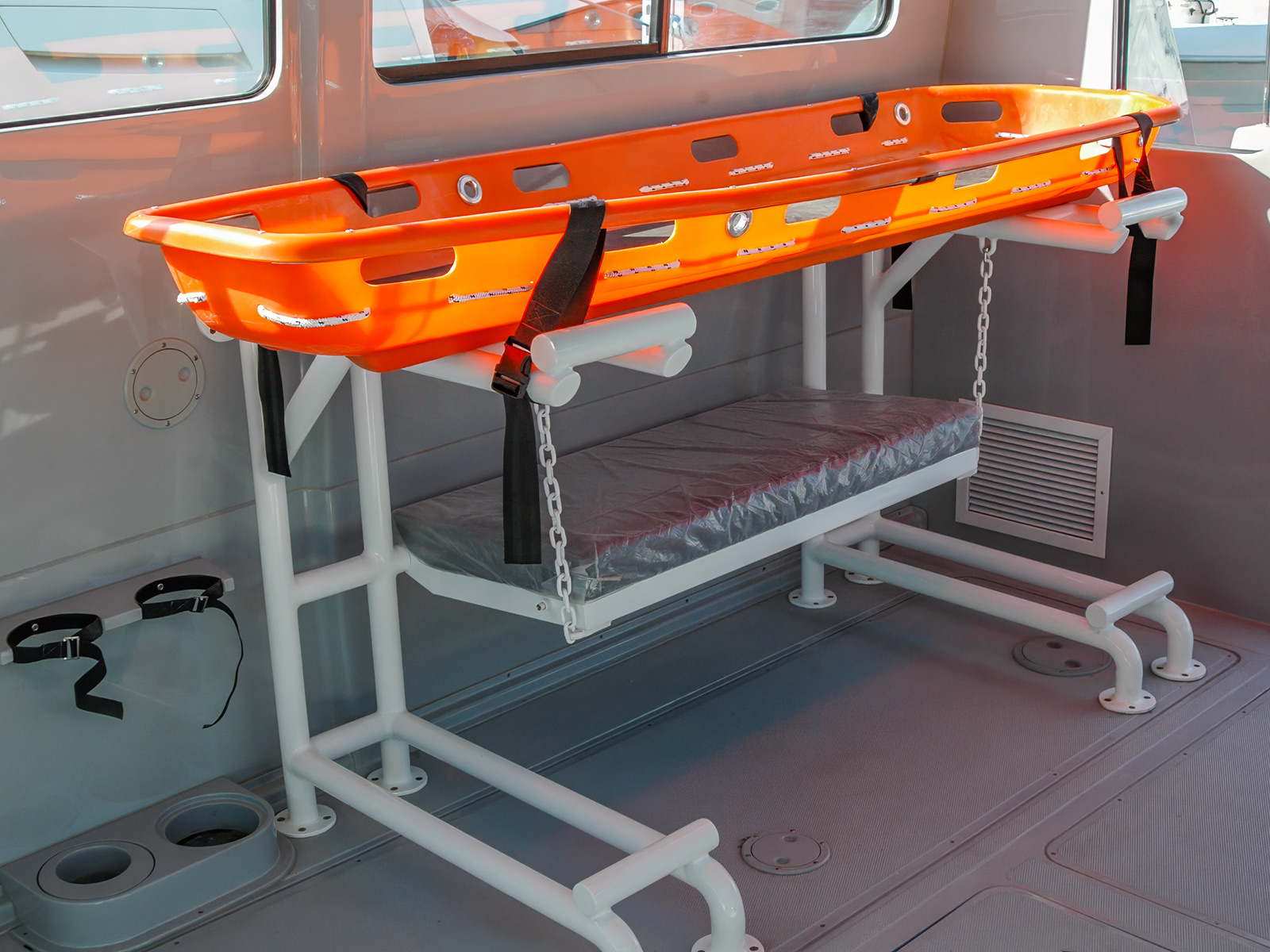

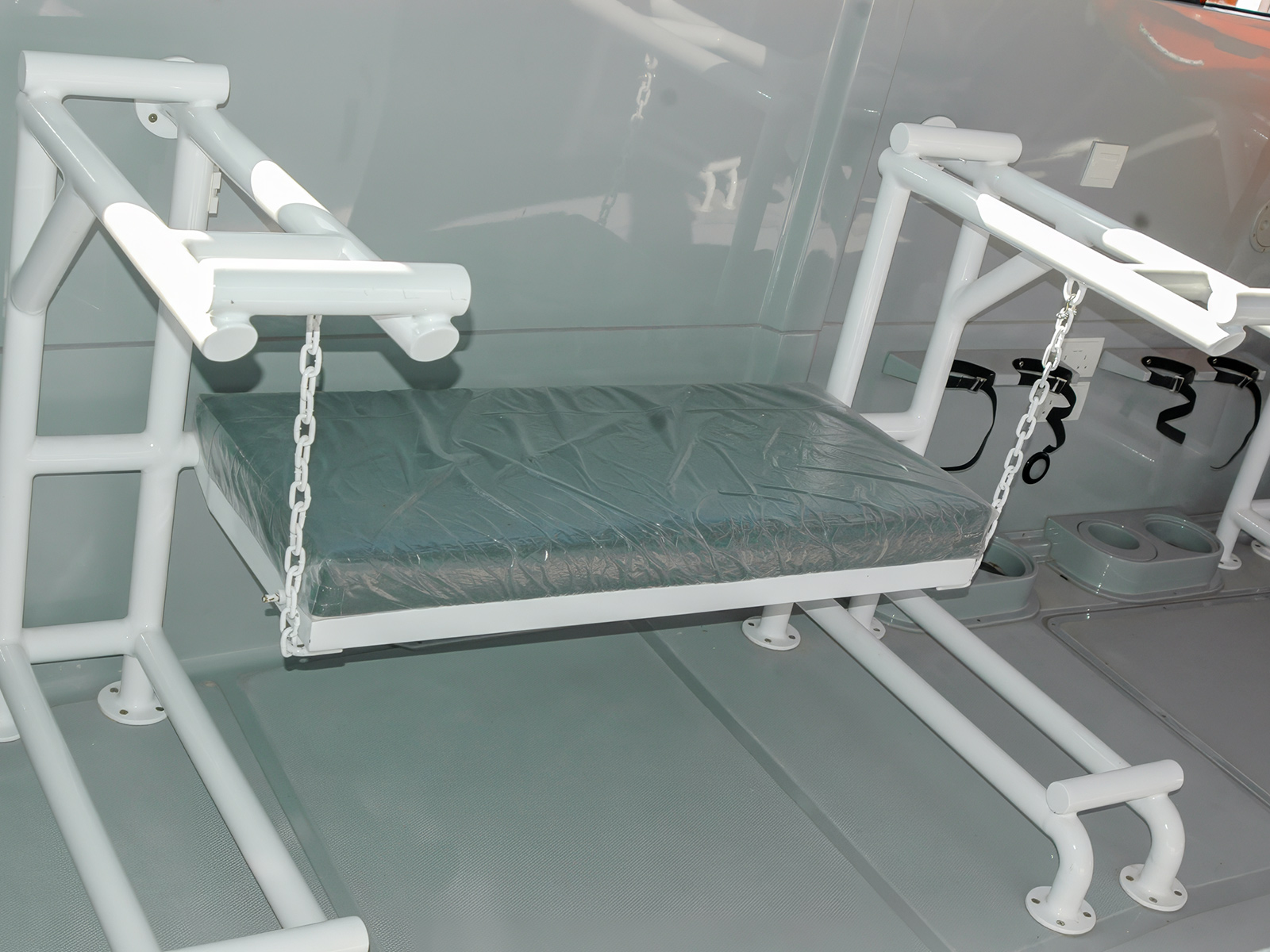

  • Cabin arrangement as per drawing with 3 nos. Stretcher
  • Aluminum fuel tank with fittings
  • Diesel tank with fittings
  • GRP water tank with fittings
Standard Deck Fittings
  • Black fender with stainless steel insert
  • 8” x 10” stainless steel cleats (forward, midship & aft)
  • 1 x Stainless steel bow eye
  • 2 x Stainless steel ski eyes on the transom
  • 2 x Stainless steel roof handrails (Port & STBD)
  • Stainless steel handrails on the console, forward handrails & aft handrails low profile (Port & STBD)

  • Freefall water drainage (forward deck area)
  • Manual bilge pump on the aft area
  • Stainless steel mast
  • 3 x 16 mm x 20 m mooringrope
  • 3 x F3 Portable fenders with rope
  • 6 x Oxygen tank holders (location as per GA)
  • 3 x 2 kg Fire extinguisher dry powder

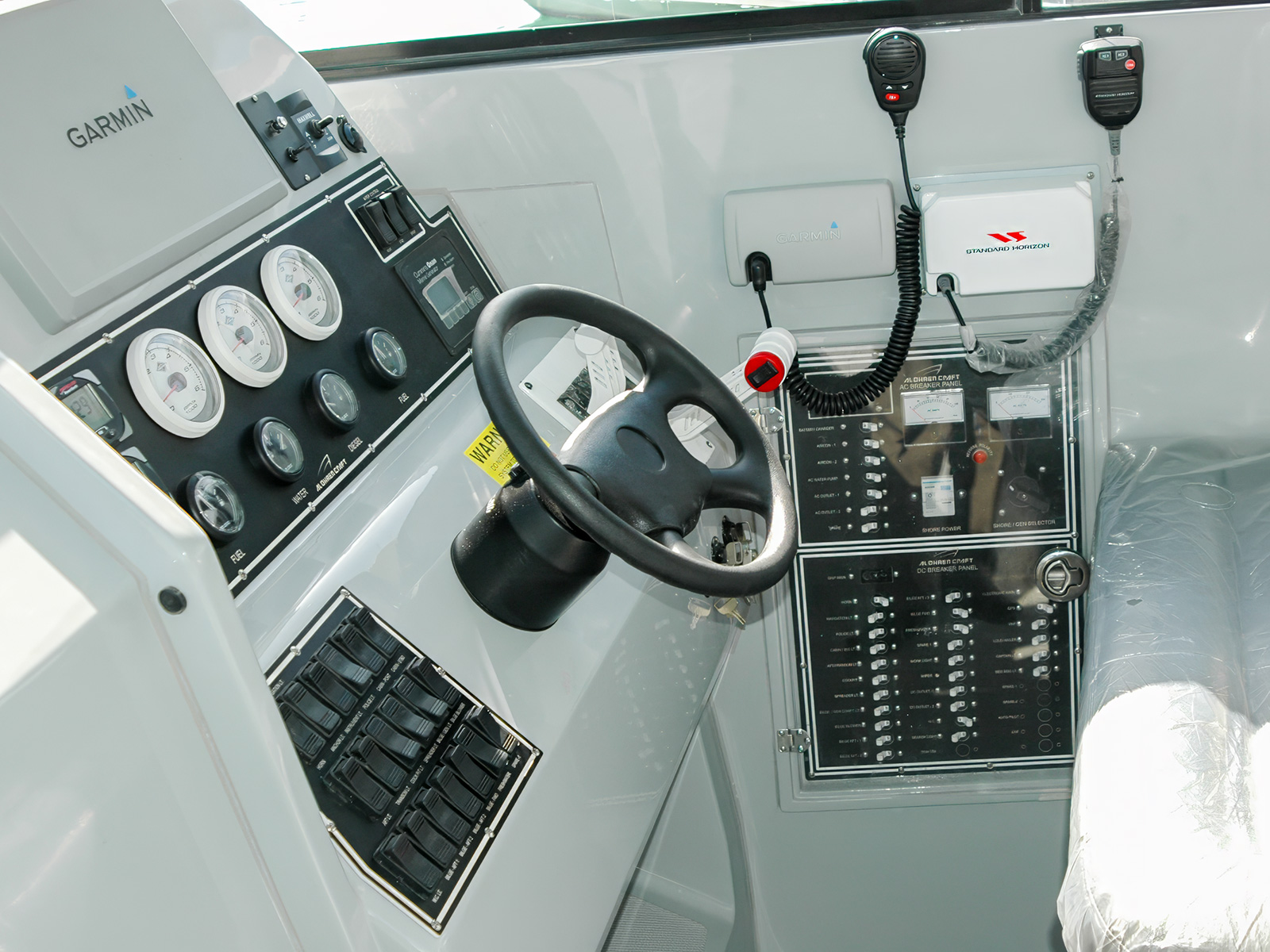

Standard Helm & Electrical
  • Electric winch with 15 kg galvanized anchor 2.5 m GI chain and
    50 m rope and stainless steel bow roler base
  • Navigation light (Port & STBD), mast head light, anchor light & stern light
  • 2 x Toilet lights
  • 8 x Cabin LED lights
  • 2 x Aft courtesy lights
  • 1 x Aft spreader light
  • 1 x Emergency light (bar type) in blue and red colour
    (to be fixed on the middle roof)
  • 2 x Bilge compartment light
  • 12v USB charger outlet on helm
  • Switchboard 12 v DC & Braker panel
  • Magnetic compass with 12 v light
  • Electric horn with single trumpet

  • 1 x Service battery with battery box
  • 2 x Long wipers with spray in windshields
  • 1 x 3700 GPH electric bilge pump in the aft with alarm system
  • 2 x 1500 GPH bilge pump (one midship & one bilge compartment)
  • 1 x Service battery with battery box
  • 3 x Engine batteries with box
  • 1 x Shore power system with 50’ cable including socket
  • 1 x Garmin GPS map 923xsv with blue chart (gulf map) and IH transducer
  • 1 x Garmin VHF Radio 215i with antenna
  • 1 x AIS 800
  • 1 x Loud hailer with one speaker
  • 2 x 1800 BTU K2 marine air conditioner unit (self contained)
  • 1 x 8.5 KVA Fisher Panda marine generator with accessories
Life Saving Equipment
  • 2 x Life raft (6 persons each)
  • 12 x Life jacket (adult)
  • 4 x Life ring with 15 m line

  • 1 x First aid lit
  • Ambulance boat sticker in red colour (Port & STBD)
    size & dimensions TBC & Cross (+) sign
    on the roof
