Passenger Transport

410 PT (Close Cabin)

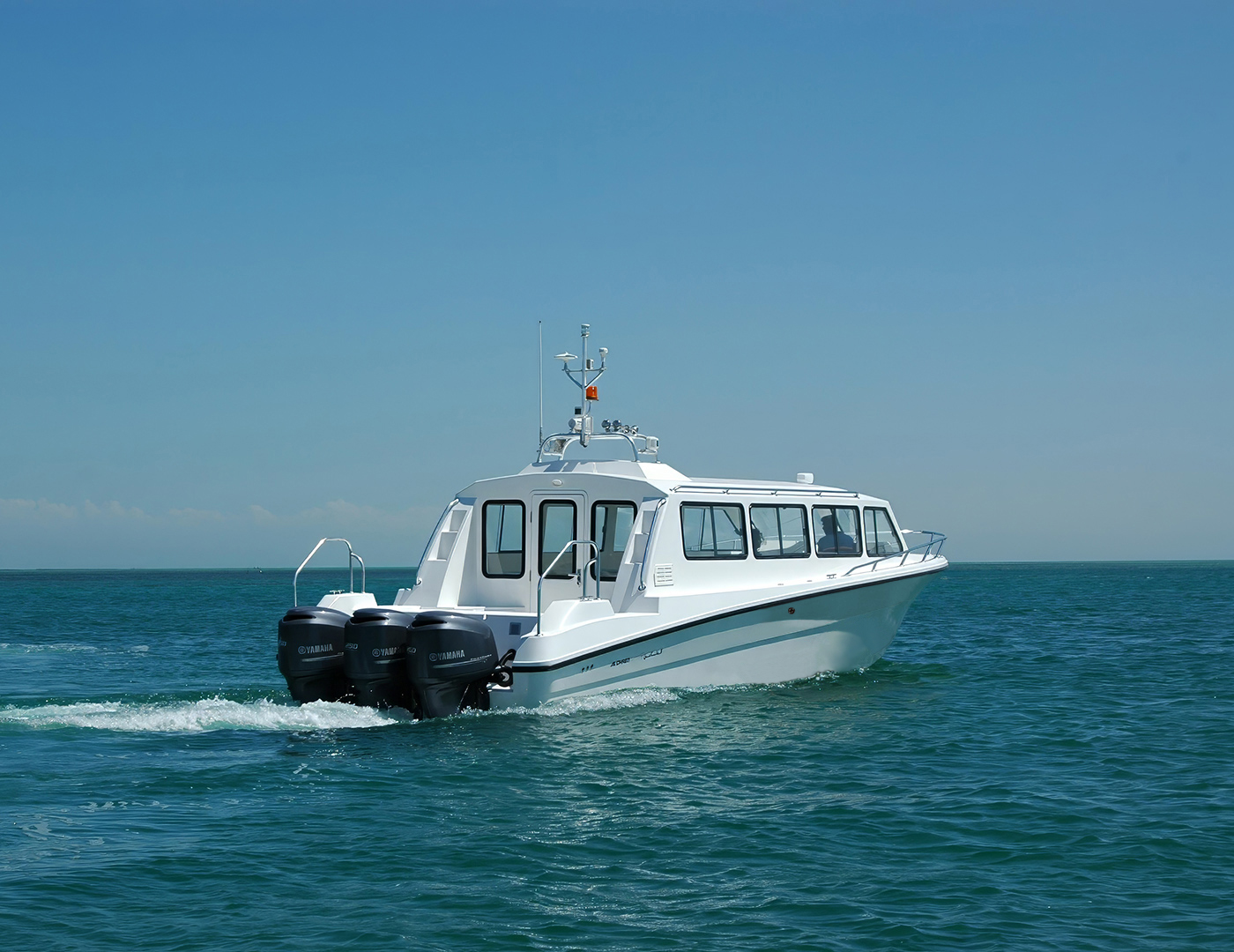

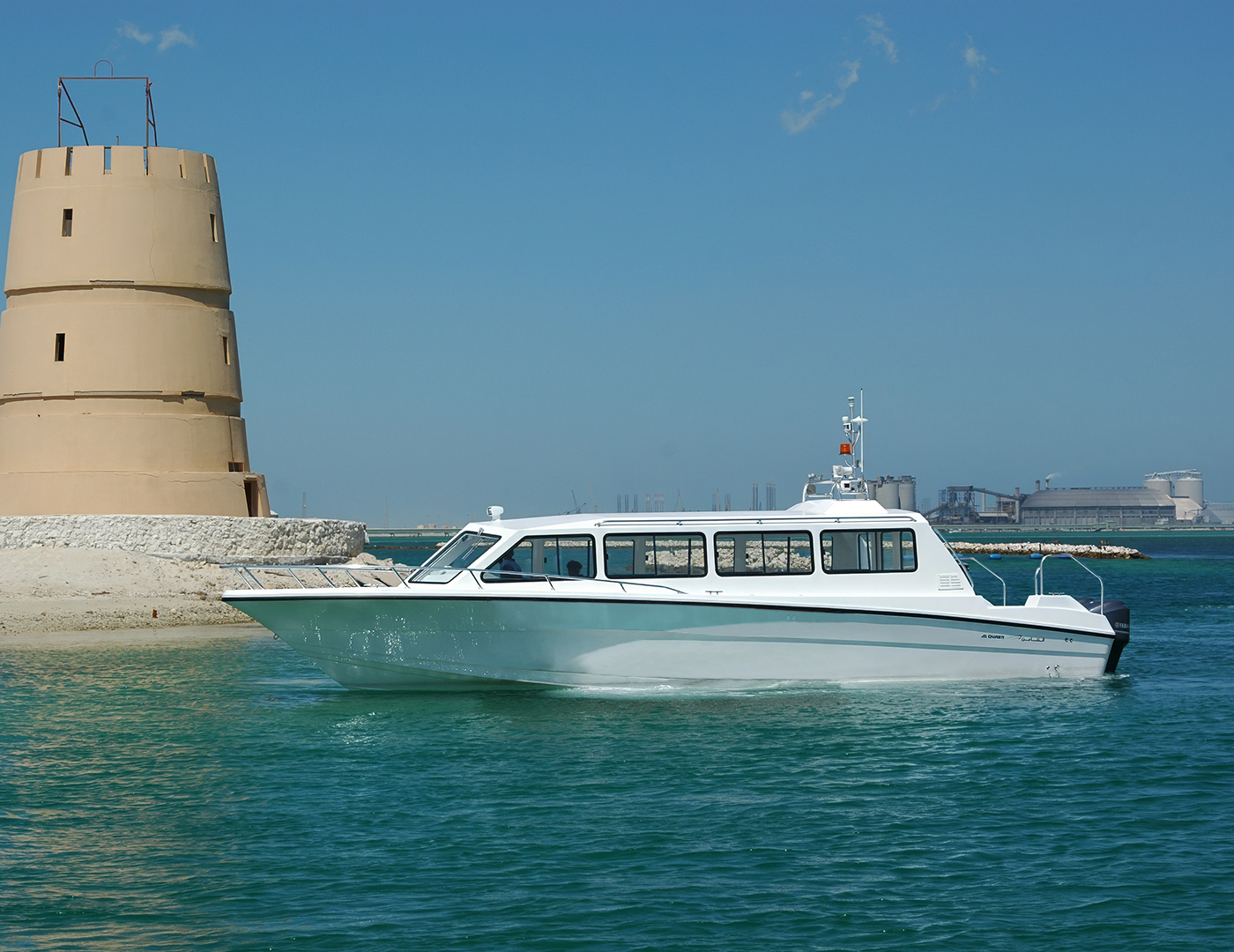

Al Dhaen Marine’s 410 Transporter  is designed to accommodate up to 24 person (22 passenger +2 crew) comfortably for daily trips. It offers a spacious open cabin layout that provides ample seating and freshwater toilet and powered by strong outboard engines up to 1200 HP.

Comfortable seating with personal luggage storage

Full roof shade

Entertainment system

Stability

Perfect sea view

Safety features

Easy access

Durability

Passenger Transport

410 PT (Close Cabin)

The 410 Transporter is an ideal choice for tourist trips with a large group of around 24 person (22 passenger +2 crew), offering a blend of comfort, safety, functionality and premium construction adds to its classic appeal ensure comfort in any weather for an enjoyable experience on the water.

  • 13.50 Metres (44' 3")
  • 24 persons
  • 11,500 KG
  • 1200 HP
  • Length of the Hull (W/E): Length of the Hull (W/E) : 12.50 m (41’)
  • Beam: Beam : 3.34 m (10‘ 11”)
  • Draft (Full loaded):: Draft (Full loaded) : 0.66 m (2’ 2”)
  • Displacement (Full load): Displacement (Full load) : 10,250 kg (22,597.4 lbs)
  • Fuel Tank Capacity: : Fuel Tank Capacity : 1,000 l (264.2 US gal)
  • Fresh Water Tank Capacity:: Fresh Water Tank Capacity : 200 l (52.8 US gal)
  • Carrying Capacity: Carrying Capacity : 2,400 kg (5,291.1 lbs)
  • Max Persons:: Max Persons : 24
  • Max Engine HP Capacity: Max Engine HP Capacity : 1,200 HP
Download Full Specifications
Passenger Transport

410 PT (Close Cabin)

General
  • Hull & Deck finishes in White Gel Coat
  • Deck areas in non-slip GRP
  • Open pilot cabin, with aluminum frame windows (set of 7 nos.)
  • Helm seat with upholstery and backrest
  • Forward deck seat with side bolster
  • SSliding aluminum frame window at foredeck (Port & STBD) captain seat, fixed aluminum window at front & Aluminum frame Cabin sliding perspex windows

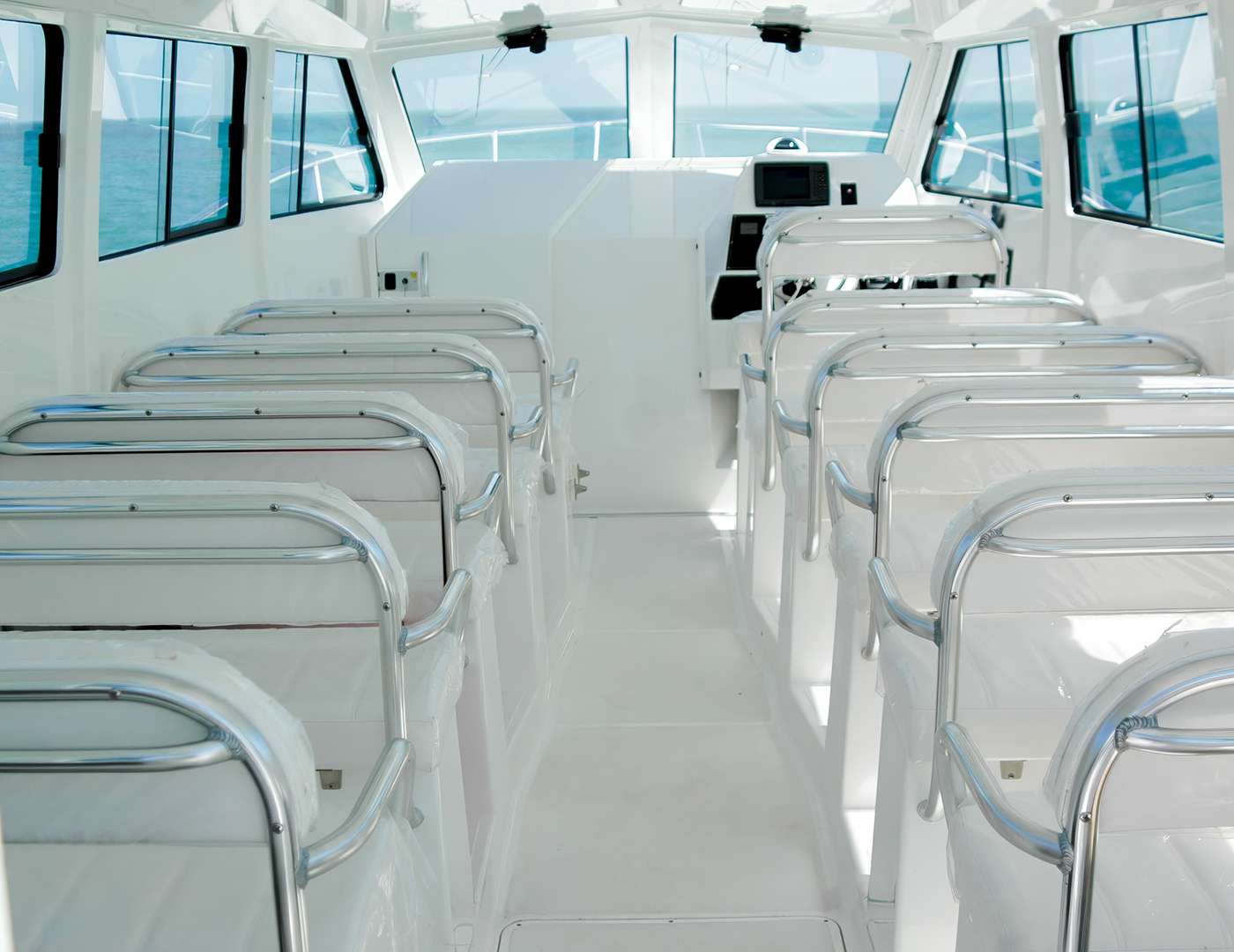

  • Seating area for 22 passengers with upholstered FRP seats with backrest
  • Aft deck, STBD side door for embarkation of passengers

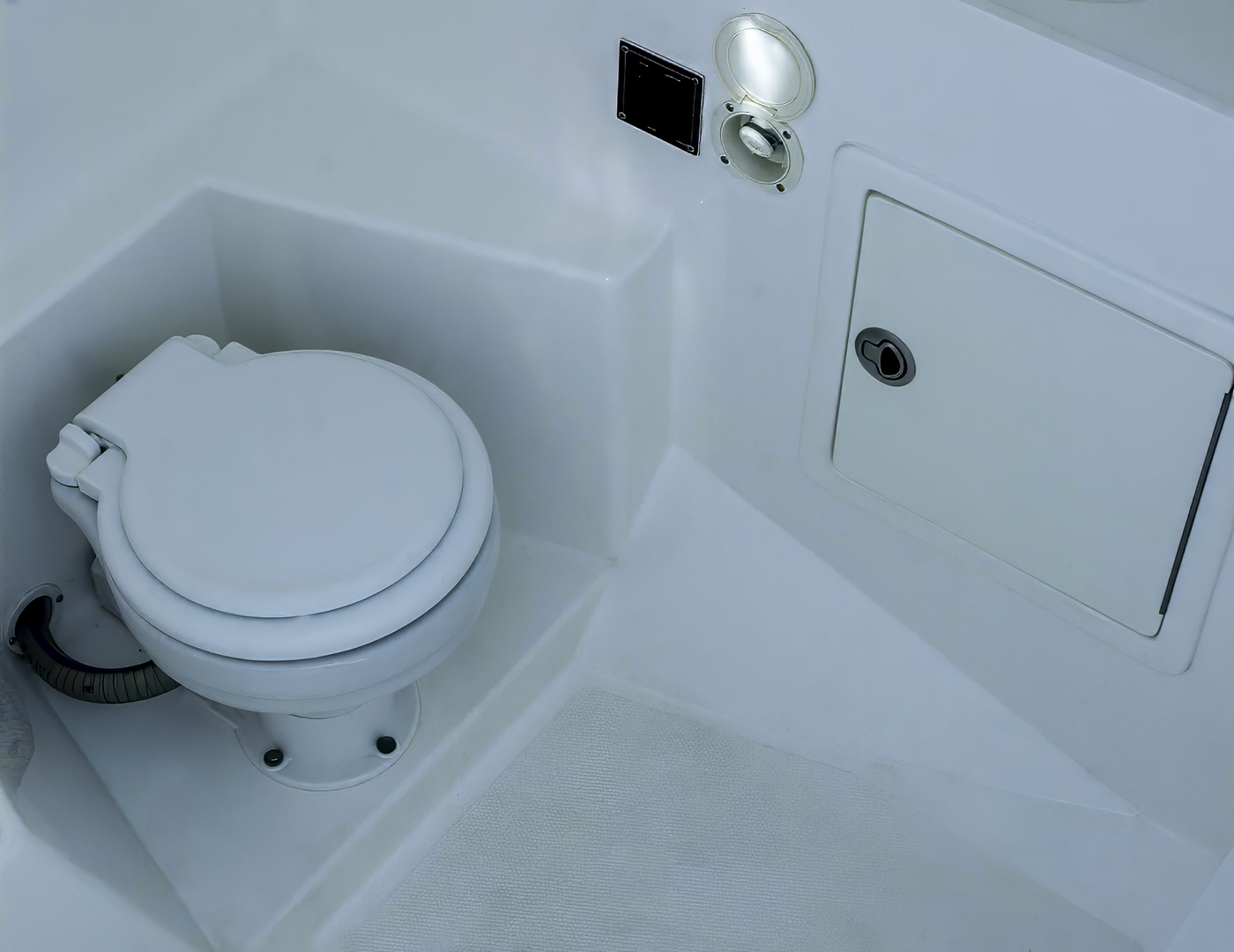

  • Fresh water electric toilet (direct overboard) inside the cabin with sink, pul out shower, scupper in the floor drains to bilge, stainless steel hinges and hasps for all hatches with lock
  • Aluminum fuel tank with fittings
  • Diesel tank with fittings
  • GRP water tank with fittings
  • Black water tank with fittings
Deck Fittings
  • White fender and stainless steel insert
  • 15 kg galvanized anchor with 30 m rope
  • 8” x 10” Stainless steel cleats
  • 1 x Stainless steel bow eye
  • 2 x Stainless steel ski eyes on the transom
  • Stainless steel handrails on the console, forward Handrails & aft handrails (Port & STBD)
  • 4 x Stainless steel hand rail in Cabin ceiling
  • Freefall water drainage (forward deck area)
  • Manual bilge pump on the aft area

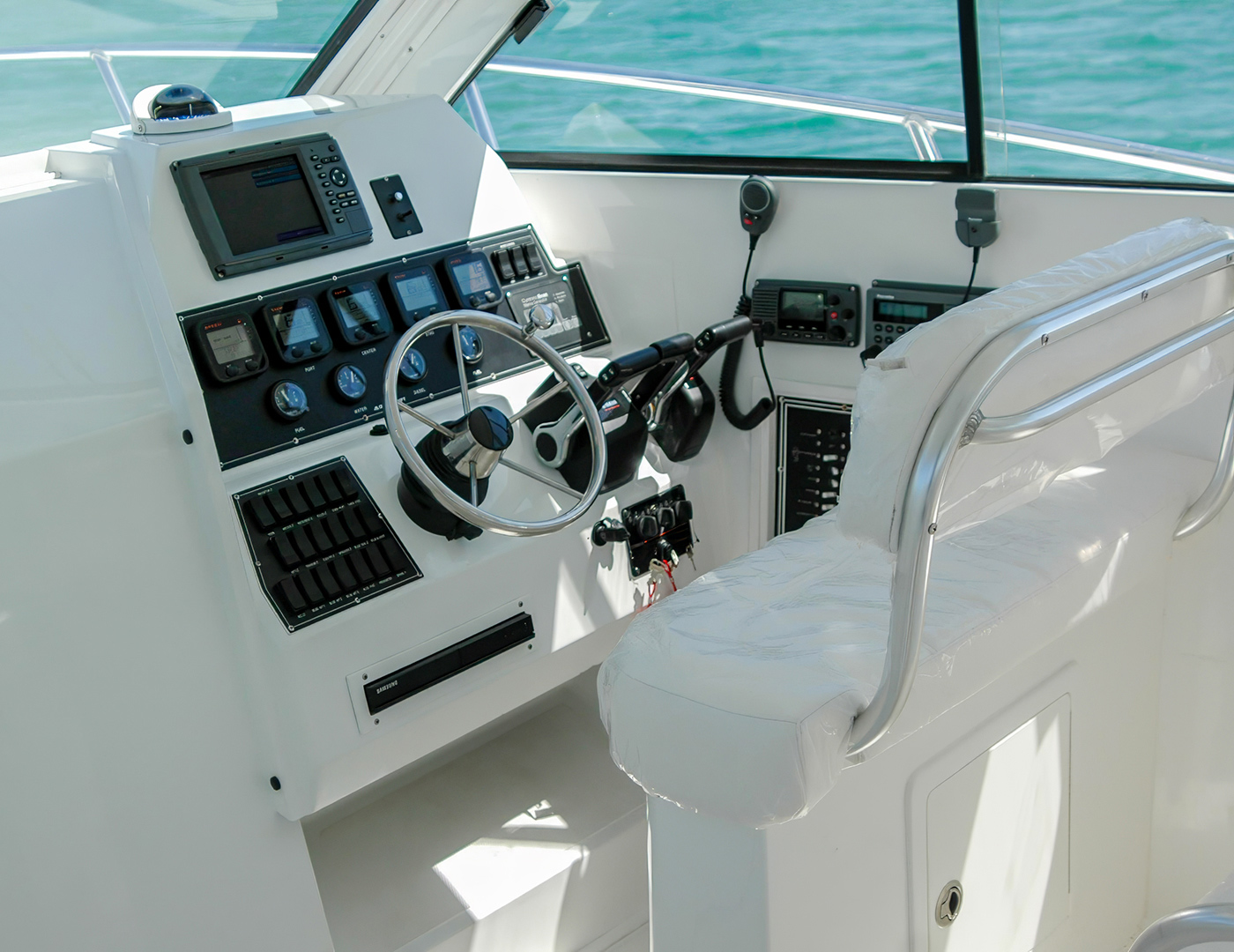

Helm & Electrical
  • Electric winch with stainless steel anchor, stainless steel bow roller, 2.5 meter galvanized chain & 50 m rope and stainless steel bow roller
  • 2 x Toilet Lights
  • 8 x Cabin LED lights
  • Navigation light (Port & STBD), Mast head light, Anchor light & Stern light
  • 12 v USB charger outlet on helm
  • Switchboard 12 v DC
  • Magnetic compass with 12 v light
  • 1 x Plastic cup holder on helm
  • 2 x Long wipers with spray in windshields
  • 1 x 3700 GPH Electric bilge pump in the aft with alarm system
  • 32 x 1500 GPH Bilge pump (one midship & one bilge compartment)
  • 1 x Service battery with battery box
  • 1 x Garmin GPS map 1623xsv with blue chart (region TBC by sales) and IH Transducer
  • 2 x 1800 BTU K2 Marine Air Conditioner unit
  • 1 x 8.5 KVA Fisher Panda Marine Generator with Accessories
